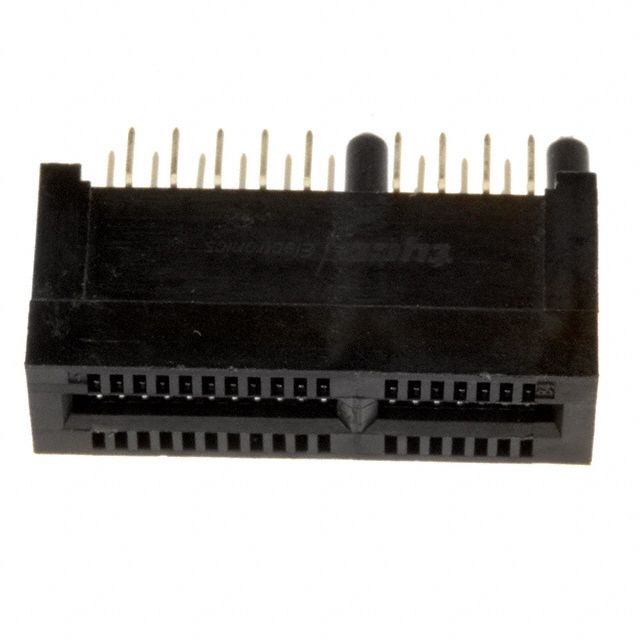

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Expansion Card Category | PCI Express™ | |
| Connector Polarity Type | Female | |
| Bay Row Position Total | - | |
| Switch Position Options | 36 | |
| Card Board Depth | 0.062" (1.57mm) | |
| Grid Row Count | 2 | |
| Component Spacing Distance | 0.039" (1.00mm) | |
| Data Readout Method | Dual | |
| Key Product Highlights | Board Guide, Locking Ramp | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Solder, Staggered | |
| Pin Alloy Composition | Copper Alloy | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 30.0µin (0.76µm) | |
| Pin Interface Category | - | |
| Visual Hue | Black | |
| Flange Design Element | - | |
| Ambient Temp Range | -40°C ~ 85°C |
Description
Appropriate for card thickness of 0.062" (1.57mm). Works with card types identified as PCI Express™. Offered in a shade referred to as Black to enhance the system's aesthetics. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Constructed from the contact material known as Copper Alloy. Equipped with features categorized as Board Guide, Locking Ramp. Defined with Female gender configuration for connector compatibility. Mounting configuration Through Hole for structural stability. Overall number of positions 36 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Distance 0.039" (1.00mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Retrieve Dual for analysis or display. Termination method Solder, Staggered for electrical or mechanical connections.
