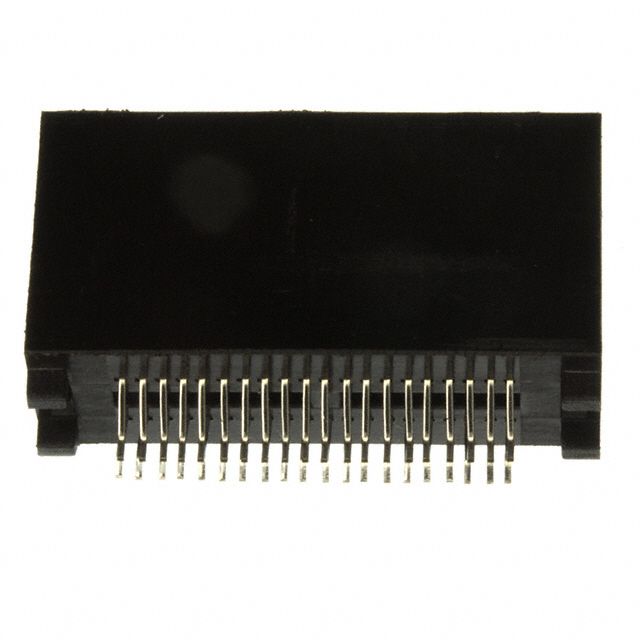

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Expansion Card Category | Non Specified - Dual Edge | |
| Connector Polarity Type | Female | |
| Bay Row Position Total | 20 | |
| Switch Position Options | 40 | |
| Card Board Depth | 0.062" (1.57mm) | |
| Grid Row Count | 2 | |
| Component Spacing Distance | 0.039" (1.00mm) | |
| Data Readout Method | Dual | |
| Key Product Highlights | Card Extender | |
| Attachment Mounting Style | Board Edge, Straddle Mount | |
| Circuit End Method | Solder | |
| Pin Alloy Composition | Phosphor Bronze | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 10.0µin (0.25µm) | |
| Pin Interface Category | Hairpin Bellows | |
| Visual Hue | Black | |
| Flange Design Element | - | |
| Ambient Temp Range | -65°C ~ 125°C |
Description
Appropriate for card thickness of 0.062" (1.57mm). Works with card types identified as Non Specified - Dual Edge. Offered in a shade referred to as Black to enhance the system's aesthetics. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 10.0µin (0.25µm). Constructed from the contact material known as Phosphor Bronze. Makes use of a contact type known as Hairpin Bellows. Equipped with features categorized as Card Extender. Defined with Female gender configuration for connector compatibility. Mounting configuration Board Edge, Straddle Mount for structural stability. Overall number of positions 40 for switches or mechanical components. Positions per bay/row 20 for organized mounting. Overall rows 2 for setting up matrices or displays. Temperature range -65°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Distance 0.039" (1.00mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Retrieve Dual for analysis or display. Termination method Solder for electrical or mechanical connections.
