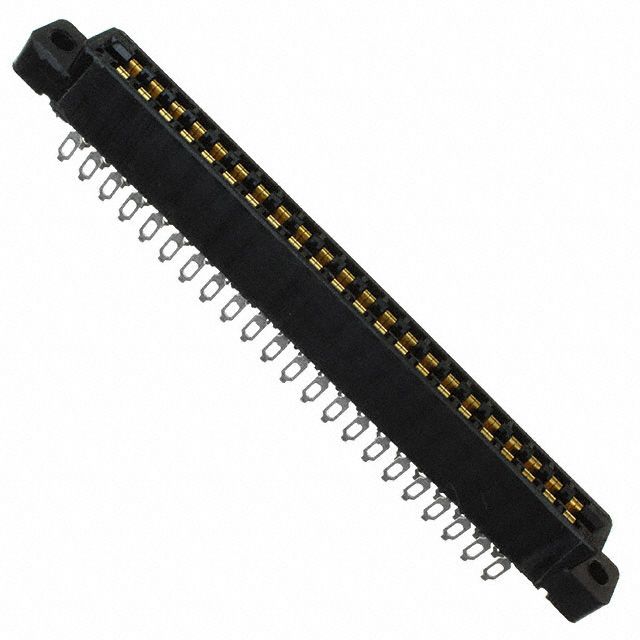

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Cardcon™ | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Expansion Card Category | Non Specified - Dual Edge | |
| Connector Polarity Type | Female | |
| Bay Row Position Total | 22 | |
| Switch Position Options | 44 | |
| Card Board Depth | 0.062" (1.57mm) | |
| Grid Row Count | 2 | |
| Component Spacing Distance | 0.156" (3.96mm) | |
| Data Readout Method | Dual | |
| Key Product Highlights | - | |
| Attachment Mounting Style | Panel Mount | |
| Circuit End Method | Solder Eyelet(s) | |
| Pin Alloy Composition | Brass | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 10.0µin (0.25µm) | |
| Pin Interface Category | Loop Bellows | |
| Visual Hue | Black | |
| Flange Design Element | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | |
| Ambient Temp Range | - |
Description
Appropriate for card thickness of 0.062" (1.57mm). Works with card types identified as Non Specified - Dual Edge. Offered in a shade referred to as Black to enhance the system's aesthetics. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 10.0µin (0.25µm). Constructed from the contact material known as Brass. Makes use of a contact type known as Loop Bellows. Offers flange specifications defined as Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia. Defined with Female gender configuration for connector compatibility. Mounting configuration Panel Mount for structural stability. Overall number of positions 44 for switches or mechanical components. Positions per bay/row 22 for organized mounting. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Distance 0.156" (3.96mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Retrieve Dual for analysis or display. Classification series for the product or component Cardcon™. Termination method Solder Eyelet(s) for electrical or mechanical connections.
