Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | AMPLIMITE HD-20 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 15 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Connector Shell Configuration | 2 (DA, A) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Cable Side (4-40) | |
| Circuit End Method | Solder Cup | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Tin Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 8.00µin (0.203µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 3A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |
Description

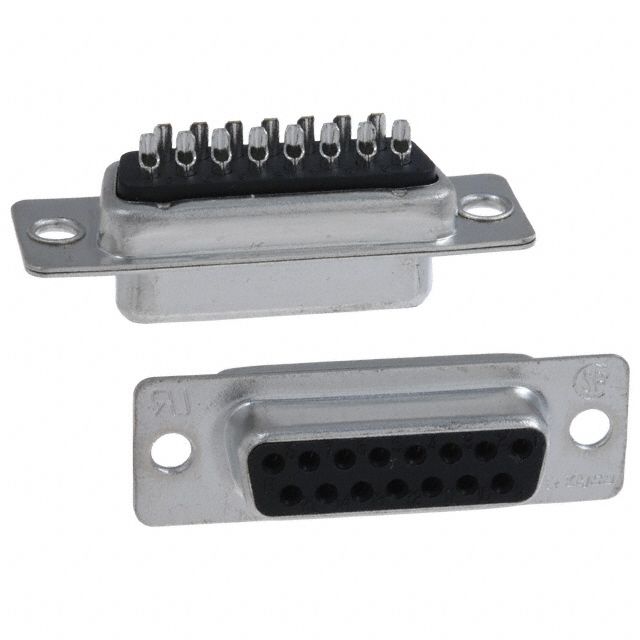

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 8.00µin (0.203µm). Makes use of a contact type known as Signal. Sets the ampere rating to 3A. Offers flange specifications defined as Cable Side (4-40). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 15 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component AMPLIMITE HD-20. Material and finish of the shell Steel, Tin Plated for strength. Shell dimensions for connector setup 2 (DA, A) for proper fitting. Termination method Solder Cup for electrical or mechanical connections.
