Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Military, MIL-DTL-24308, AMPLIMITE 109 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 15 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Connector Shell Configuration | 2 (DA, A) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Crimp | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Cadmium Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 50.0µin (1.27µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Ampere Capacity Rating | 7.5A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |
Description

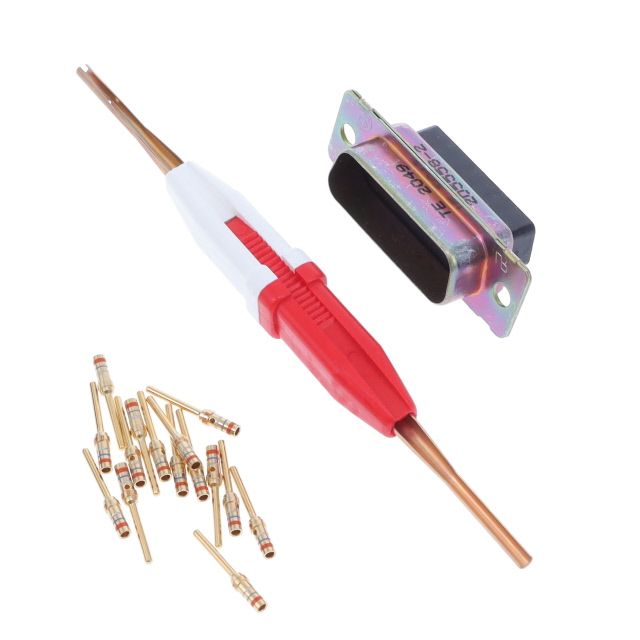

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 50.0µin (1.27µm). Makes use of a contact type known as Signal. Sets the ampere rating to 7.5A. Offers flange specifications defined as Housing/Shell (Unthreaded). Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 15 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component Military, MIL-DTL-24308, AMPLIMITE 109. Material and finish of the shell Steel, Cadmium Plated for strength. Shell dimensions for connector setup 2 (DA, A) for proper fitting. Termination method Crimp for electrical or mechanical connections.
