Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | AMPLIMITE HD-20 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 9 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Connector Shell Configuration | 1 (DE, E) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Solder | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Tin Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 20.0µin (0.51µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Ampere Capacity Rating | 2.2A | |
| Rear Connector Gap | - | |
| Key Product Highlights | Grounding Indents |
Description

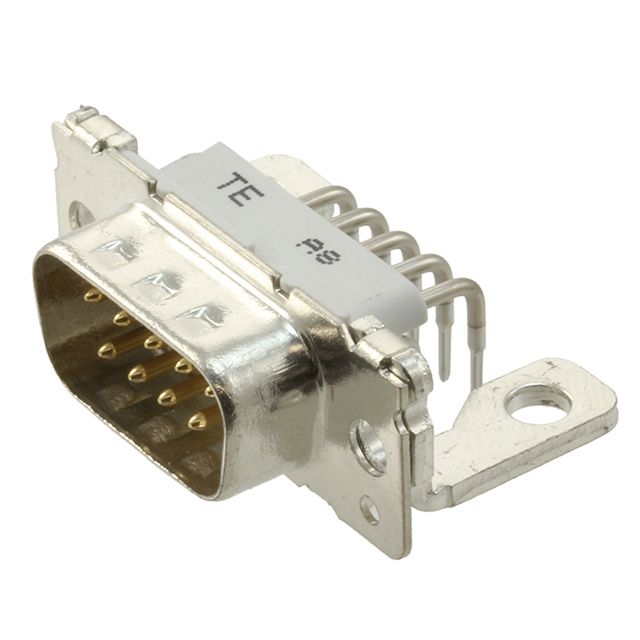

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 20.0µin (0.51µm). Makes use of a contact type known as Signal. Sets the ampere rating to 2.2A. Equipped with features categorized as Grounding Indents. Offers flange specifications defined as Housing/Shell (Unthreaded). Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 9 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component AMPLIMITE HD-20. Material and finish of the shell Steel, Tin Plated for strength. Shell dimensions for connector setup 1 (DE, E) for proper fitting. Termination method Solder for electrical or mechanical connections.
