Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DATA-CON-X® DCP | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Plug Design Type | D-Sub, High Density | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 15 | |
| Grid Row Count | 3 | |
| Attachment Mounting Style | Panel Mount | |
| Connector Shell Configuration | 1 (DE, E) High Density | |
| Pin Interface Category | Signal | |
| Flange Design Element | Mating Side, Female Screwlock | |
| Circuit End Method | Solder Cup | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Tin Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | - | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 2A | |
| Rear Connector Gap | - | |
| Key Product Highlights | Gasket |
Description

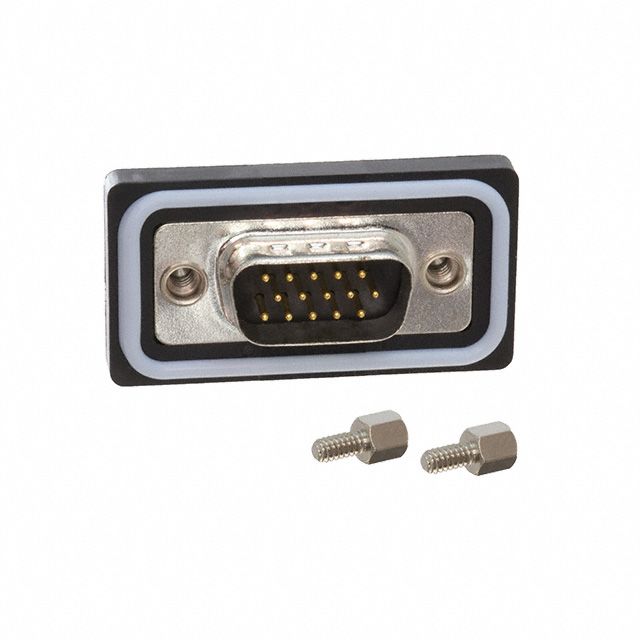

Utilizes a connector style known as D-Sub, High Density. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Makes use of a contact type known as Signal. Sets the ampere rating to 2A. Equipped with features categorized as Gasket. Offers flange specifications defined as Mating Side, Female Screwlock. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Panel Mount for structural stability. Overall number of positions 15 for switches or mechanical components. Overall rows 3 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component DATA-CON-X® DCP. Material and finish of the shell Steel, Tin Plated for strength. Shell dimensions for connector setup 1 (DE, E) High Density for proper fitting. Termination method Solder Cup for electrical or mechanical connections.
