Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 103 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 15 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Connector Shell Configuration | 2 (DA, A) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | IDC, Ribbon Cable | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Tin Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | Flash | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 3A | |
| Rear Connector Gap | - | |
| Key Product Highlights | Feed Through, Strain Relief |
Description

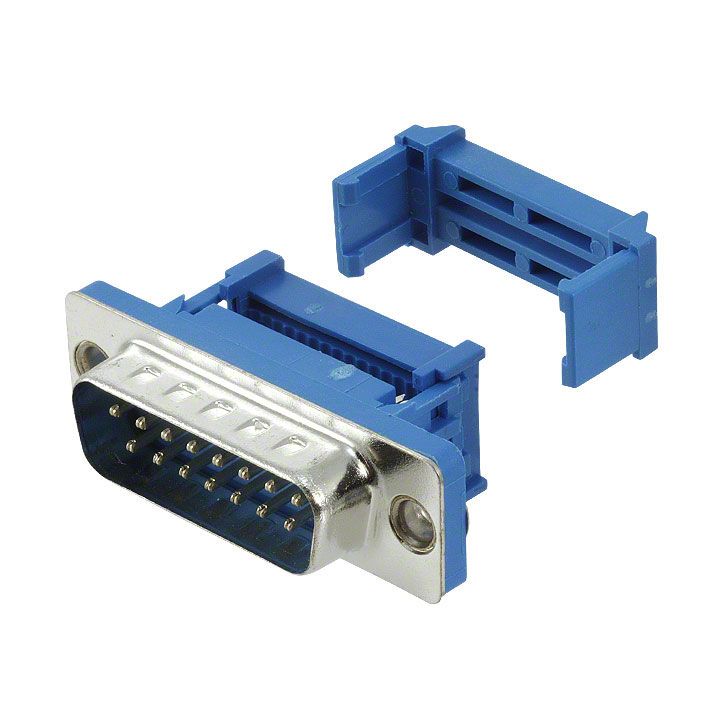

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at Flash. Makes use of a contact type known as Signal. Sets the ampere rating to 3A. Equipped with features categorized as Feed Through, Strain Relief. Offers flange specifications defined as Housing/Shell (Unthreaded). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 15 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 103. Material and finish of the shell Steel, Tin Plated for strength. Shell dimensions for connector setup 2 (DA, A) for proper fitting. Termination method IDC, Ribbon Cable for electrical or mechanical connections.
