Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SD | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 9 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Connector Shell Configuration | 1 (DE, E) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Solder Cup | |
| Main Construction Material | Metal | |
| Housing Material and Surface | Steel, Tin-Nickel Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 5.00µin (0.127µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 1A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |
Description

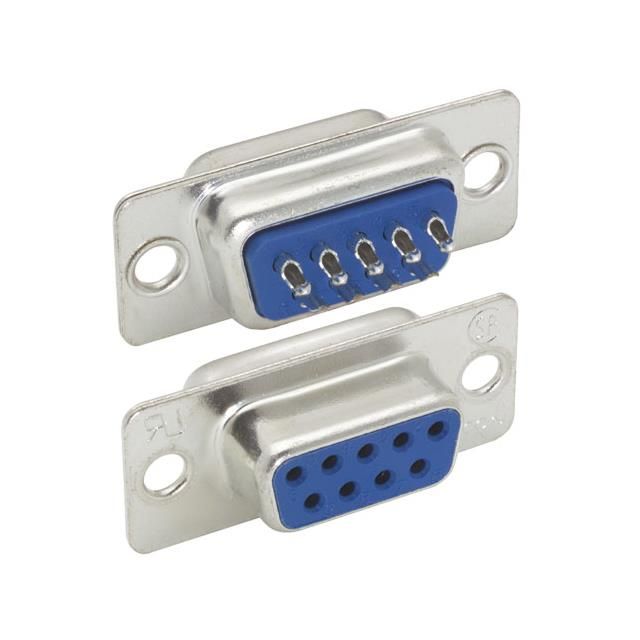

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 5.00µin (0.127µm). Makes use of a contact type known as Signal. Sets the ampere rating to 1A. Offers flange specifications defined as Housing/Shell (Unthreaded). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 9 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bag for safeguarding or transporting components. Primary material Metal for structural and functional applications. Product status Active concerning availability and lifecycle. Classification series for the product or component SD. Material and finish of the shell Steel, Tin-Nickel Plated for strength. Shell dimensions for connector setup 1 (DE, E) for proper fitting. Termination method Solder Cup for electrical or mechanical connections.
