Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DGSH15FT | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |
| Plug Design Type | D-Sub, High Density | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 15 | |
| Grid Row Count | 3 | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Connector Shell Configuration | 1 (DE, E) High Density | |
| Pin Interface Category | Signal | |
| Flange Design Element | Mating Side, Female Screwlock (4-40) | |
| Circuit End Method | Terminal Block | |
| Main Construction Material | - | |
| Housing Material and Surface | - | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Ampere Capacity Rating | - | |
| Rear Connector Gap | - | |
| Key Product Highlights | Board Lock |
Description

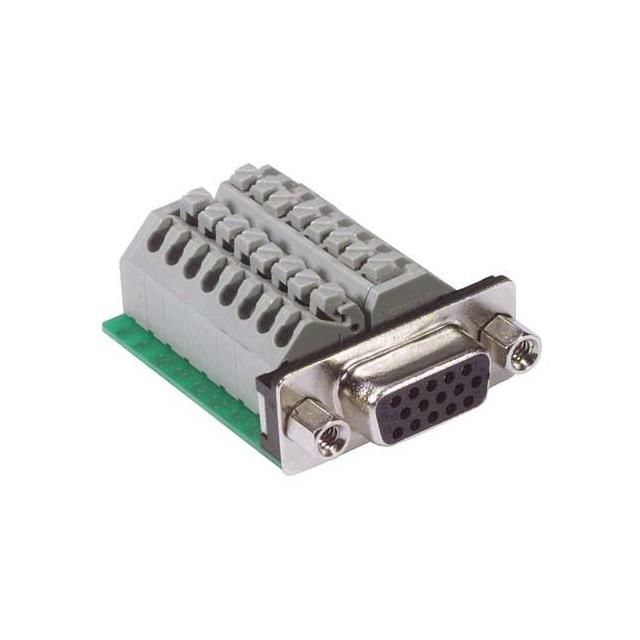

Utilizes a connector style known as D-Sub, High Density. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Makes use of a contact type known as Signal. Equipped with features categorized as Board Lock. Offers flange specifications defined as Mating Side, Female Screwlock (4-40). Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 15 for switches or mechanical components. Overall rows 3 for setting up matrices or displays. Type of housing Bag for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component DGSH15FT. Shell dimensions for connector setup 1 (DE, E) High Density for proper fitting. Termination method Terminal Block for electrical or mechanical connections.
