Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |

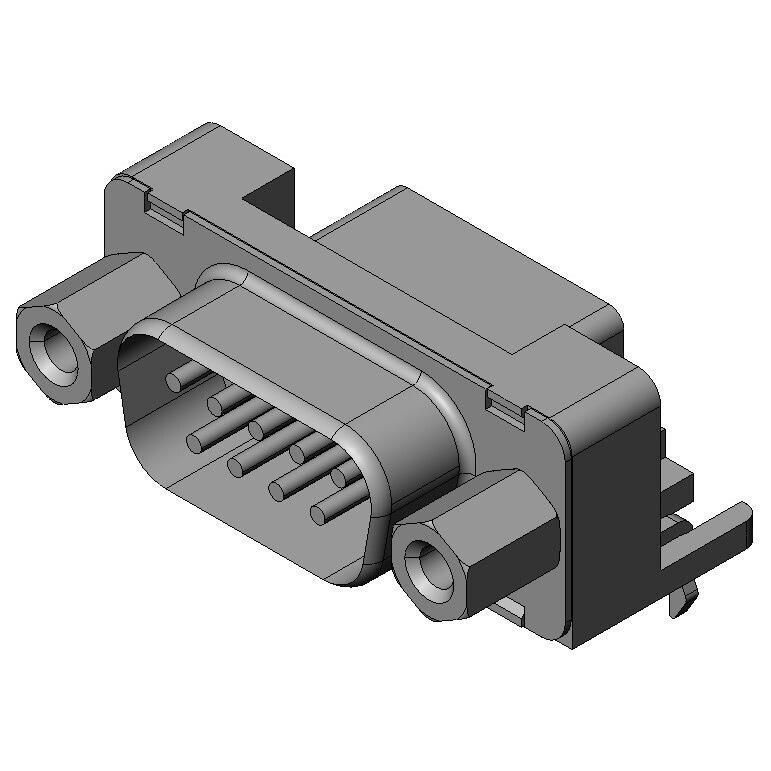

| Plug Design Type | D-Sub | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 9 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Connector Shell Configuration | 1 (DE, E) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Mating Side, Female Screwlock (4-40) | |
| Circuit End Method | Solder | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Nickel Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 5A | |
| Rear Connector Gap | 0.299" (7.60mm) | |
| Key Product Highlights | Board Lock, Grounding Indents |
Description
Provides a rear space of 0.299" (7.60mm) for proper installation alignment. Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Makes use of a contact type known as Signal. Sets the ampere rating to 5A. Equipped with features categorized as Board Lock, Grounding Indents. Offers flange specifications defined as Mating Side, Female Screwlock (4-40). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 9 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Material and finish of the shell Steel, Nickel Plated for strength. Shell dimensions for connector setup 1 (DE, E) for proper fitting. Termination method Solder for electrical or mechanical connections.
