Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | DA | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 15 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Panel Mount | |
| Connector Shell Configuration | 2 (DA, A) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Crimp | |
| Main Construction Material | Metal | |
| Housing Material and Surface | Steel, Yellow Chromate Plated Cadmium | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 5A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |
Description

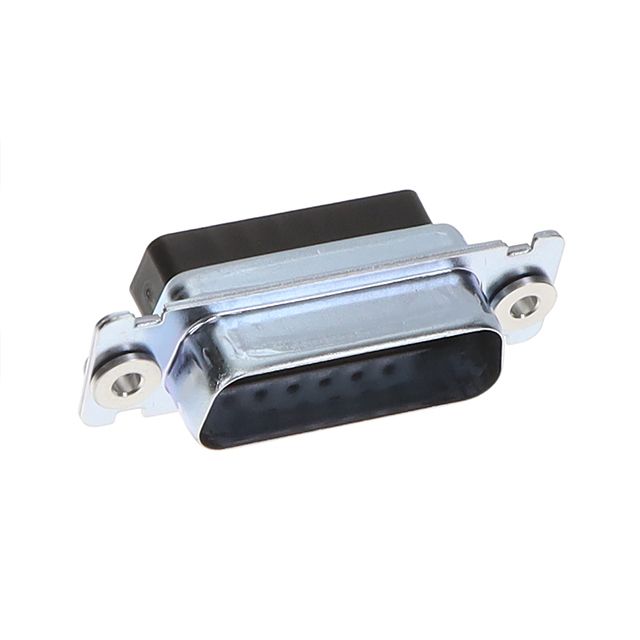

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Makes use of a contact type known as Signal. Sets the ampere rating to 5A. Offers flange specifications defined as Housing/Shell (Unthreaded). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Panel Mount for structural stability. Overall number of positions 15 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Primary material Metal for structural and functional applications. Product status Active concerning availability and lifecycle. Classification series for the product or component DA. Material and finish of the shell Steel, Yellow Chromate Plated Cadmium for strength. Shell dimensions for connector setup 2 (DA, A) for proper fitting. Termination method Crimp for electrical or mechanical connections.
