Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 7,401.24000 | ₹ 7,401.24 |
| 5 | ₹ 5,122.31000 | ₹ 25,611.55 |
| 10 | ₹ 4,638.86000 | ₹ 46,388.60 |
| 25 | ₹ 4,292.47000 | ₹ 1,07,311.75 |
| 50 | ₹ 3,663.24000 | ₹ 1,83,162.00 |
| 75 | ₹ 3,113.75000 | ₹ 2,33,531.25 |
| 100 | ₹ 3,052.70000 | ₹ 3,05,270.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 24308-Style, D*MM | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Plug, Male Pins | |
| Switch Position Options | 25 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Panel Mount, Through Hole, Right Angle | |
| Connector Shell Configuration | 3 (DB, B) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Solder | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Yellow Chromate Plated Cadmium | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 50.0µin (1.27µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Ampere Capacity Rating | 7.5A | |
| Rear Connector Gap | - | |
| Key Product Highlights | Mounting Brackets |
Description

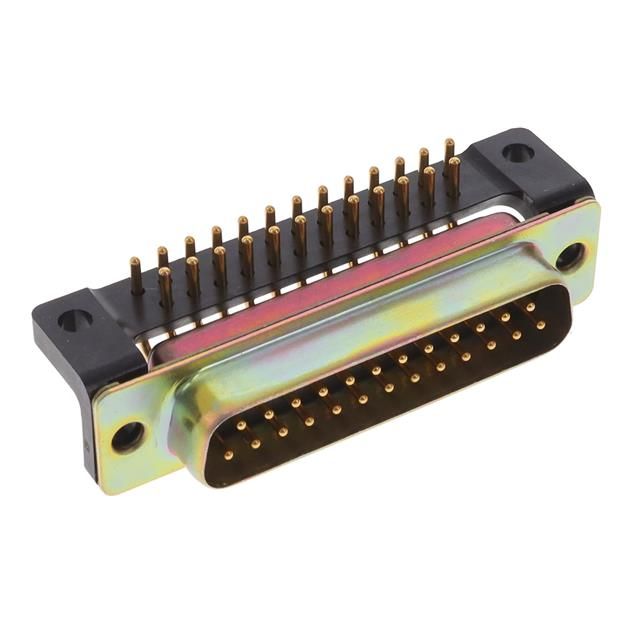

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Plug, Male Pins. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 50.0µin (1.27µm). Makes use of a contact type known as Signal. Sets the ampere rating to 7.5A. Equipped with features categorized as Mounting Brackets. Offers flange specifications defined as Housing/Shell (Unthreaded). Mounting configuration Panel Mount, Through Hole, Right Angle for structural stability. Overall number of positions 25 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 24308-Style, D*MM. Material and finish of the shell Steel, Yellow Chromate Plated Cadmium for strength. Shell dimensions for connector setup 3 (DB, B) for proper fitting. Termination method Solder for electrical or mechanical connections.
