Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 856.11000 | ₹ 85,611.00 |
| 50 | ₹ 860.57000 | ₹ 43,028.50 |
| 30 | ₹ 865.03000 | ₹ 25,950.90 |
| 10 | ₹ 1,296.42000 | ₹ 12,964.20 |
| 1 | ₹ 1,439.13000 | ₹ 1,439.13 |
Stock:
Distributor: 33
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 1,494.31000 | ₹ 7,471.55 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 24308-Style, D*MM | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 9 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Panel Mount | |
| Connector Shell Configuration | 1 (DE, E) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Solder Cup | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Yellow Chromate Plated Zinc | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 50.0µin (1.27µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Ampere Capacity Rating | 7.5A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |

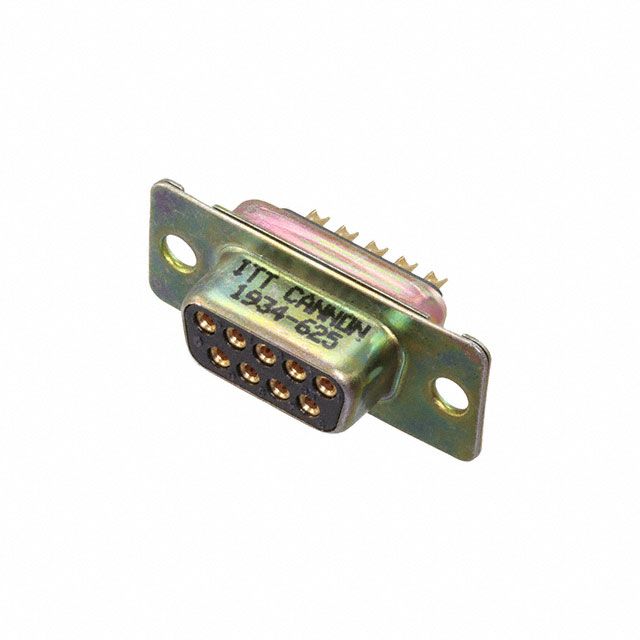

Description
Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 50.0µin (1.27µm). Makes use of a contact type known as Signal. Sets the ampere rating to 7.5A. Offers flange specifications defined as Housing/Shell (Unthreaded). Mounting configuration Panel Mount for structural stability. Overall number of positions 9 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 24308-Style, D*MM. Material and finish of the shell Steel, Yellow Chromate Plated Zinc for strength. Shell dimensions for connector setup 1 (DE, E) for proper fitting. Termination method Solder Cup for electrical or mechanical connections.
