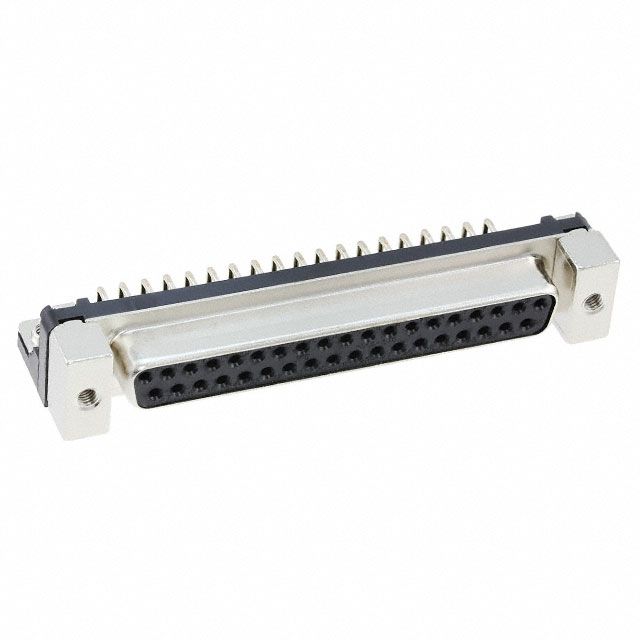

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | RD*D | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 37 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Panel Mount, Through Hole, Right Angle | |
| Connector Shell Configuration | 4 (DC, C) | |
| Pin Interface Category | Signal | |
| Flange Design Element | - | |
| Circuit End Method | Solder | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Nickel Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 8.00µin (0.203µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 3A | |
| Rear Connector Gap | - | |
| Key Product Highlights | Board Lock |
Description
Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 8.00µin (0.203µm). Makes use of a contact type known as Signal. Sets the ampere rating to 3A. Equipped with features categorized as Board Lock. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Panel Mount, Through Hole, Right Angle for structural stability. Overall number of positions 37 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component RD*D. Material and finish of the shell Steel, Nickel Plated for strength. Shell dimensions for connector setup 4 (DC, C) for proper fitting. Termination method Solder for electrical or mechanical connections.
