Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 628 (Metal) | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 25 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Through Hole | |
| Connector Shell Configuration | 3 (DB, B) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Board Side (4-40) | |
| Circuit End Method | Solder | |
| Main Construction Material | - | |
| Housing Material and Surface | Steel, Nickel Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 15.0µin (0.38µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 3A per Contact | |
| Rear Connector Gap | - | |
| Key Product Highlights | Board Lock, Shielded |
Description

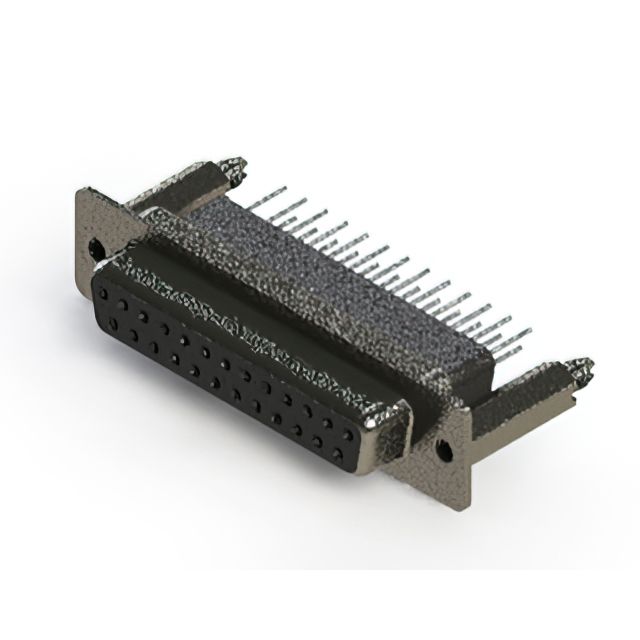

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 15.0µin (0.38µm). Makes use of a contact type known as Signal. Sets the ampere rating to 3A per Contact. Equipped with features categorized as Board Lock, Shielded. Offers flange specifications defined as Board Side (4-40). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 25 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component 628 (Metal). Material and finish of the shell Steel, Nickel Plated for strength. Shell dimensions for connector setup 3 (DB, B) for proper fitting. Termination method Solder for electrical or mechanical connections.
