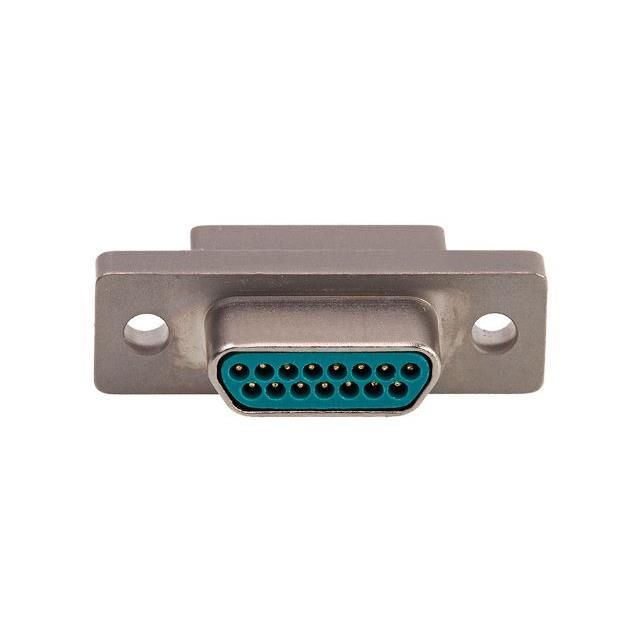

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Military, MIL-C-83513, M83513 | |
| IC Encapsulation Type | BagRetail Package | |
| Availability Status | Active | |
| Plug Design Type | D-Type, Micro-D | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 31 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Panel Mount | |
| Connector Shell Configuration | 0.050 Pitch x 0.043 Row to Row | |
| Pin Interface Category | Signal | |
| Flange Design Element | Housing/Shell (Unthreaded) | |
| Circuit End Method | Solder Cup | |
| Main Construction Material | - | |
| Housing Material and Surface | Aluminum Alloy, Yellow Chromate Plated Cadmium | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 50.0µin (1.27µm) | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 3A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |
Description
Utilizes a connector style known as D-Type, Micro-D. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 50.0µin (1.27µm). Makes use of a contact type known as Signal. Sets the ampere rating to 3A. Offers flange specifications defined as Housing/Shell (Unthreaded). Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Panel Mount for structural stability. Overall number of positions 31 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing BagRetail Package for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component Military, MIL-C-83513, M83513. Material and finish of the shell Aluminum Alloy, Yellow Chromate Plated Cadmium for strength. Shell dimensions for connector setup 0.050 Pitch x 0.043 Row to Row for proper fitting. Termination method Solder Cup for electrical or mechanical connections.
