Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Plug Design Type | D-Sub | |
| Interface Connector Category | Receptacle, Female Sockets | |
| Switch Position Options | 9 | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Connector Shell Configuration | 1 (DE, E) | |
| Pin Interface Category | Signal | |
| Flange Design Element | Mating Side, Female Screwlock (4-40) | |
| Circuit End Method | Solder Cup | |
| Main Construction Material | - | |
| Housing Material and Surface | Copper Alloy, Tin Plated | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 8.00µin (0.203µm) | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Fire Resistance Classification | UL94 V-0 | |
| Ampere Capacity Rating | 7.5A | |
| Rear Connector Gap | - | |
| Key Product Highlights | - |
Description

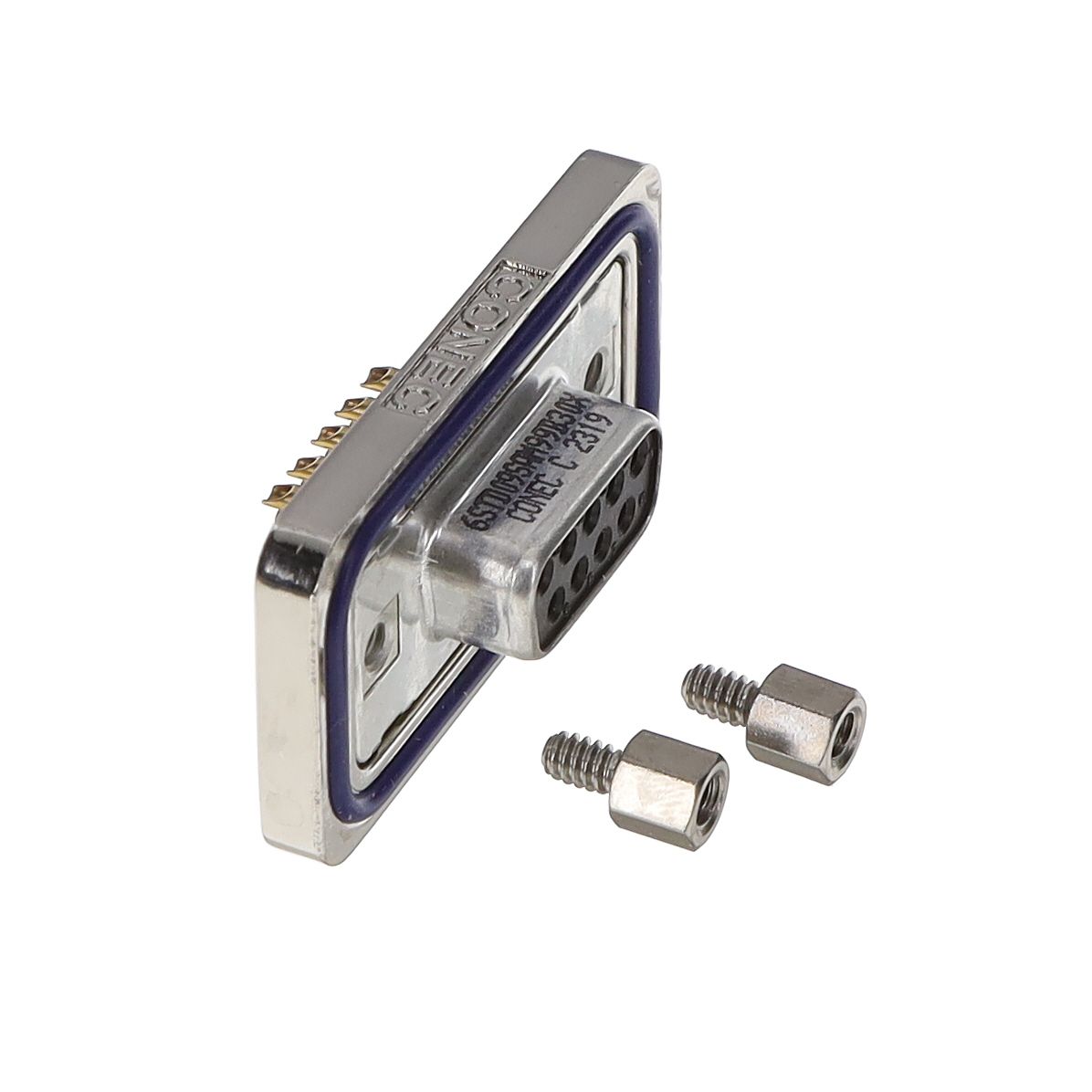

Utilizes a connector style known as D-Sub. Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 8.00µin (0.203µm). Makes use of a contact type known as Signal. Sets the ampere rating to 7.5A. Offers flange specifications defined as Mating Side, Female Screwlock (4-40). Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 9 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Material and finish of the shell Copper Alloy, Tin Plated for strength. Shell dimensions for connector setup 1 (DE, E) for proper fitting. Termination method Solder Cup for electrical or mechanical connections.
