Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | HDP20 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Interface Connector Category | Plug Housing | |
| Device Type Classification | For Male Pins | |
| Switch Position Options | 14 | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Insert Shell Dimension | 24-14 | |
| Military Shell Standard | - | |
| Pin Interface Category | Crimp | |
| Pin Dimension Gauge | 4 (1), 12 (1), 16 (12) | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Installation Mount Type | - | |
| Secure Attachment Method | Bayonet Lock | |
| Installation Orientation | Keyed | |
| Main Construction Material | Plastic | |
| Connector Housing Alloy | Polyamide (PA66), Nylon 6/6, Glass Filled | |
| Connector Shell Coating | - | |
| Enclosure Color Option | Black | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Fire Resistance Classification | UL94 V-0 | |
| Key Product Highlights | Coupling Nut | |
| Electromagnetic Interference Protection | Unshielded |

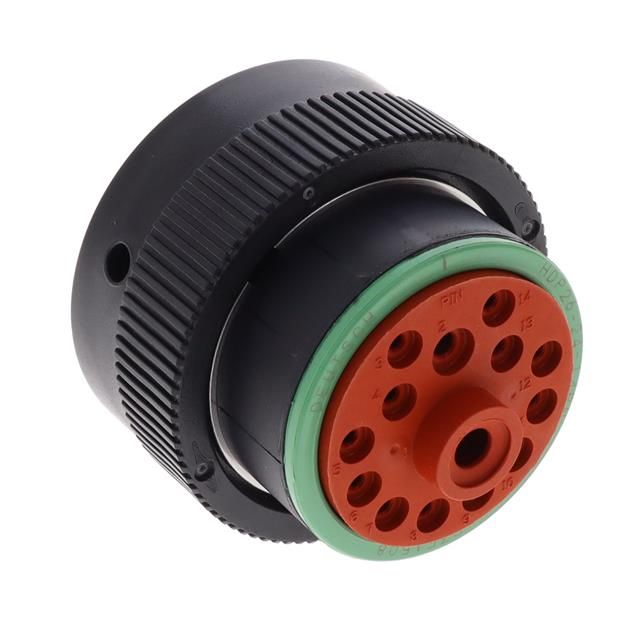

Description
Features a connector type acknowledged as Plug Housing. Indicates the contact size classified at 4 (1), 12 (1), 16 (12). Makes use of a contact type known as Crimp. Utilizes a fastening type recognized as Bayonet Lock. Equipped with features categorized as Coupling Nut. Available in Black color for the enclosure to assist in visual recognition. Employs Black light type for maximum brightness. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 14 for switches or mechanical components. Alignment Keyed for proper installation or signal positioning. Type of housing Tray for safeguarding or transporting components. Primary material Plastic for structural and functional applications. Product status Active concerning availability and lifecycle. Classification series for the product or component HDP20. Material makeup of the housing Polyamide (PA66), Nylon 6/6, Glass Filled for thermal and mechanical properties. Provide shell dimensions 24-14 to ensure connector compatibility. Shielding Unshielded for EMI/RFI protection. Type classification For Male Pins for specifications.
