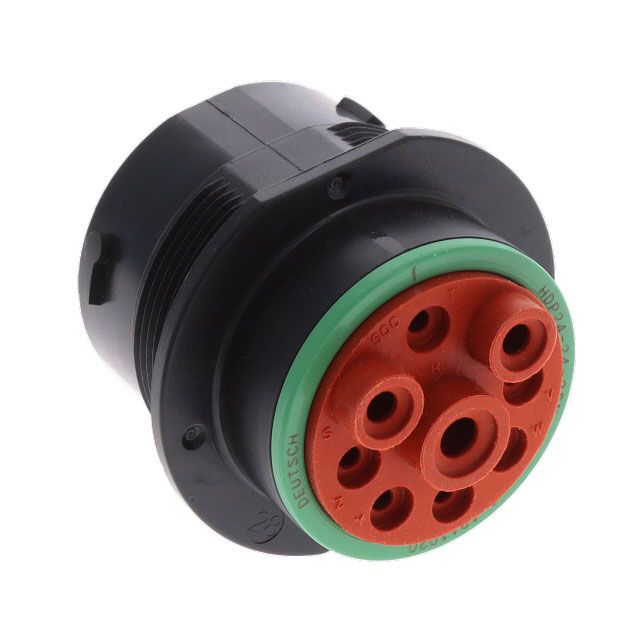

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | HDP20 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Interface Connector Category | Receptacle Housing | |
| Device Type Classification | For Female Sockets | |
| Switch Position Options | 9 | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Insert Shell Dimension | 24-9 | |
| Military Shell Standard | - | |
| Pin Interface Category | Crimp | |
| Pin Dimension Gauge | 4 (1), 8 (2), 12 (6) | |
| Attachment Mounting Style | Panel Mount | |
| Installation Mount Type | Bulkhead - Front Side Nut | |
| Secure Attachment Method | Bayonet Lock | |
| Installation Orientation | Keyed | |
| Main Construction Material | - | |
| Connector Housing Alloy | Polyamide (PA66), Nylon 6/6, Glass Filled | |
| Connector Shell Coating | - | |
| Enclosure Color Option | Black | |
| Dust Water Resistance Rating | IP68 - Dust Tight, Waterproof | |
| Fire Resistance Classification | UL94 V-1 | |
| Key Product Highlights | Dust Cap | |
| Electromagnetic Interference Protection | Unshielded |
Description
Features a connector type acknowledged as Receptacle Housing. Indicates the contact size classified at 4 (1), 8 (2), 12 (6). Makes use of a contact type known as Crimp. Utilizes a fastening type recognized as Bayonet Lock. Equipped with features categorized as Dust Cap. Available in Black color for the enclosure to assist in visual recognition. Employs Black light type for maximum brightness. Rated with IP IP68 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Classification UL94 V-1 for adherence to fire safety regulations. Type of mount Bulkhead - Front Side Nut for easy installation. Mounting configuration Panel Mount for structural stability. Overall number of positions 9 for switches or mechanical components. Alignment Keyed for proper installation or signal positioning. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component HDP20. Material makeup of the housing Polyamide (PA66), Nylon 6/6, Glass Filled for thermal and mechanical properties. Provide shell dimensions 24-9 to ensure connector compatibility. Shielding Unshielded for EMI/RFI protection. Type classification For Female Sockets for specifications.
