Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CIRH | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Interface Connector Category | Receptacle Housing | |
| Device Type Classification | For Male Pins | |
| Switch Position Options | 3 | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Insert Shell Dimension | 16-10 | |
| Military Shell Standard | - | |
| Pin Interface Category | Crimp | |
| Pin Dimension Gauge | 12 | |
| Attachment Mounting Style | Panel Mount | |
| Installation Mount Type | Flange | |
| Secure Attachment Method | Bayonet Lock | |
| Installation Orientation | N (Normal) | |
| Main Construction Material | - | |
| Connector Housing Alloy | Aluminum Alloy | |
| Connector Shell Coating | Zinc Cobalt | |
| Enclosure Color Option | Black | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Fire Resistance Classification | - | |
| Key Product Highlights | - | |
| Electromagnetic Interference Protection | Unshielded |
Description

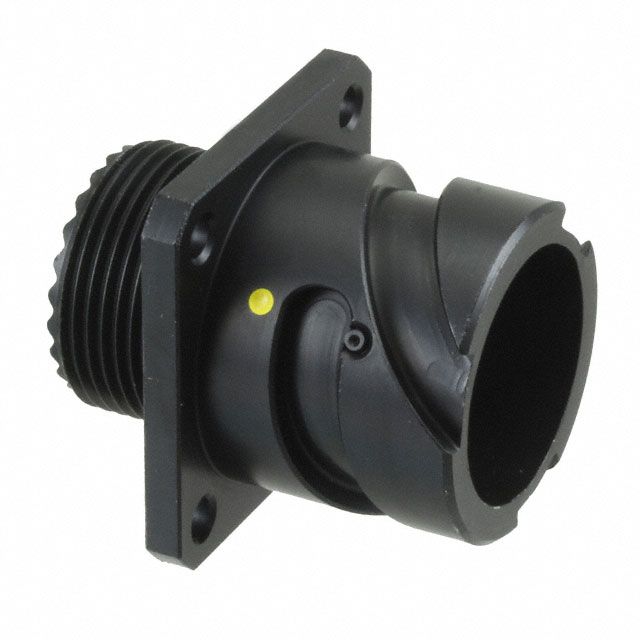

Features a connector type acknowledged as Receptacle Housing. Indicates the contact size classified at 12. Makes use of a contact type known as Crimp. Utilizes a fastening type recognized as Bayonet Lock. Available in Black color for the enclosure to assist in visual recognition. Employs Black light type for maximum brightness. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Type of mount Flange for easy installation. Mounting configuration Panel Mount for structural stability. Overall number of positions 3 for switches or mechanical components. Alignment N (Normal) for proper installation or signal positioning. Type of housing Bag for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component CIRH. Surface treatment on the shell Zinc Cobalt for visual appeal and protection. Material makeup of the housing Aluminum Alloy for thermal and mechanical properties. Provide shell dimensions 16-10 to ensure connector compatibility. Shielding Unshielded for EMI/RFI protection. Type classification For Male Pins for specifications.
