Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CPC Series 1 | |
| IC Encapsulation Type | BulkBox | |
| Availability Status | Active | |
| Interface Connector Category | Receptacle, Male Pins | |
| Switch Position Options | 16 | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Insert Shell Dimension | 17-16 | |
| Military Shell Standard | - | |
| Attachment Mounting Style | Panel Mount | |
| Installation Mount Type | Flange | |
| Circuit End Method | Solder Cup | |
| Secure Attachment Method | Threaded | |
| Installation Orientation | Keyed | |
| Main Construction Material | Plastic | |
| Connector Housing Alloy | Thermoplastic | |
| Connector Shell Coating | - | |
| Engaging Pin Coating | Gold | |
| Visual Hue | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Key Product Highlights | - | |
| Electromagnetic Interference Protection | - | |
| Ampere Capacity Rating | - | |
| Max Voltage Specification | 250VAC/DC | |
| Entry Port Size | - | |
| Ambient Temp Range | -55°C ~ 105°C |
Description

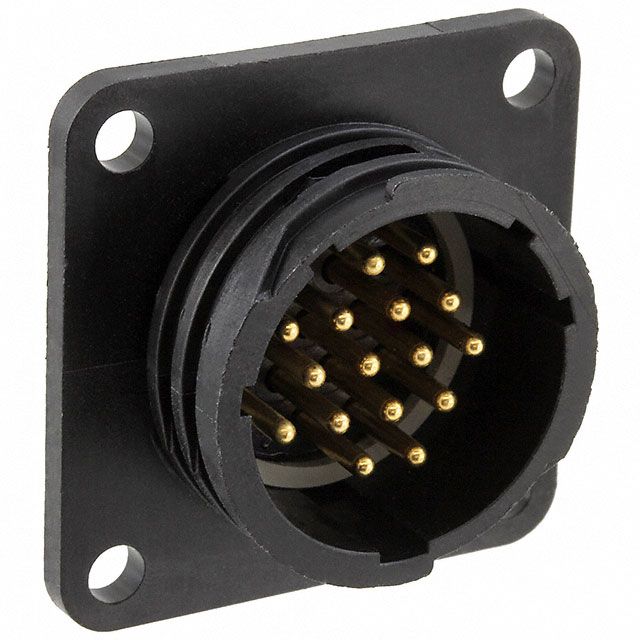

Features a connector type acknowledged as Receptacle, Male Pins. Offers mating contact finish rated at Gold. Utilizes a fastening type recognized as Threaded. Classification UL94 V-0 for adherence to fire safety regulations. Type of mount Flange for easy installation. Mounting configuration Panel Mount for structural stability. Overall number of positions 16 for switches or mechanical components. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Alignment Keyed for proper installation or signal positioning. Type of housing BulkBox for safeguarding or transporting components. Primary material Plastic for structural and functional applications. Product status Active concerning availability and lifecycle. Classification series for the product or component CPC Series 1. Material makeup of the housing Thermoplastic for thermal and mechanical properties. Provide shell dimensions 17-16 to ensure connector compatibility. Termination method Solder Cup for electrical or mechanical connections. Voltage specification 250VAC/DC for electronic devices.
