Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |
| Interface Connector Category | Plug, Female Sockets | |
| Switch Position Options | 4 | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Insert Shell Dimension | M8-4 | |
| Military Shell Standard | - | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Installation Mount Type | - | |
| Circuit End Method | IDC | |
| Secure Attachment Method | Threaded | |
| Installation Orientation | A | |
| Main Construction Material | Metal | |
| Connector Housing Alloy | Zinc Die Cast | |
| Connector Shell Coating | Nickel | |
| Engaging Pin Coating | Gold | |
| Visual Hue | Black, Silver | |
| Dust Water Resistance Rating | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | |
| Fire Resistance Classification | - | |
| Key Product Highlights | Backshell, Coupling Nut | |
| Electromagnetic Interference Protection | Unshielded | |
| Ampere Capacity Rating | 4A | |
| Max Voltage Specification | 30VAC/DC | |
| Entry Port Size | - | |
| Ambient Temp Range | -25°C ~ 80°C |

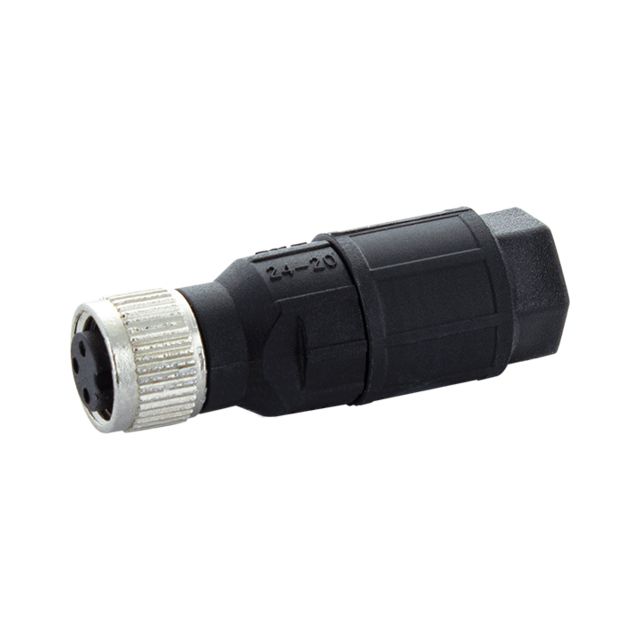

Description
Offered in a shade referred to as Black, Silver to enhance the system's aesthetics. Features a connector type acknowledged as Plug, Female Sockets. Offers mating contact finish rated at Gold. Sets the ampere rating to 4A. Utilizes a fastening type recognized as Threaded. Equipped with features categorized as Backshell, Coupling Nut. Rated with IP IP65/IP67 - Dust Tight, Water Resistant, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 4 for switches or mechanical components. Temperature range -25°C ~ 80°C for environmental conditions impacting thermal efficiency. Alignment A for proper installation or signal positioning. Type of housing Bag for safeguarding or transporting components. Primary material Metal for structural and functional applications. Product status Active concerning availability and lifecycle. Surface treatment on the shell Nickel for visual appeal and protection. Material makeup of the housing Zinc Die Cast for thermal and mechanical properties. Provide shell dimensions M8-4 to ensure connector compatibility. Shielding Unshielded for EMI/RFI protection. Termination method IDC for electrical or mechanical connections. Voltage specification 30VAC/DC for electronic devices.
