Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 1,000.36000 | ₹ 10,00,360.00 |
| 500 | ₹ 1,015.49000 | ₹ 5,07,745.00 |
| 250 | ₹ 1,043.97000 | ₹ 2,60,992.50 |
| 100 | ₹ 1,088.47000 | ₹ 1,08,847.00 |
| 50 | ₹ 1,137.42000 | ₹ 56,871.00 |
| 25 | ₹ 1,190.82000 | ₹ 29,770.50 |
| 5 | ₹ 1,313.64000 | ₹ 6,568.20 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30 | ₹ 1,228.20000 | ₹ 36,846.00 |
| 50 | ₹ 1,169.46000 | ₹ 58,473.00 |
| 100 | ₹ 1,114.28000 | ₹ 1,11,428.00 |
| 250 | ₹ 1,043.97000 | ₹ 2,60,992.50 |
| 500 | ₹ 994.13000 | ₹ 4,97,065.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,542.37000 | ₹ 1,542.37 |
| 10 | ₹ 1,310.08000 | ₹ 13,100.80 |
| 25 | ₹ 1,228.20000 | ₹ 30,705.00 |
| 50 | ₹ 1,169.46000 | ₹ 58,473.00 |
| 100 | ₹ 1,114.28000 | ₹ 1,11,428.00 |
| 250 | ₹ 1,088.47000 | ₹ 2,72,117.50 |

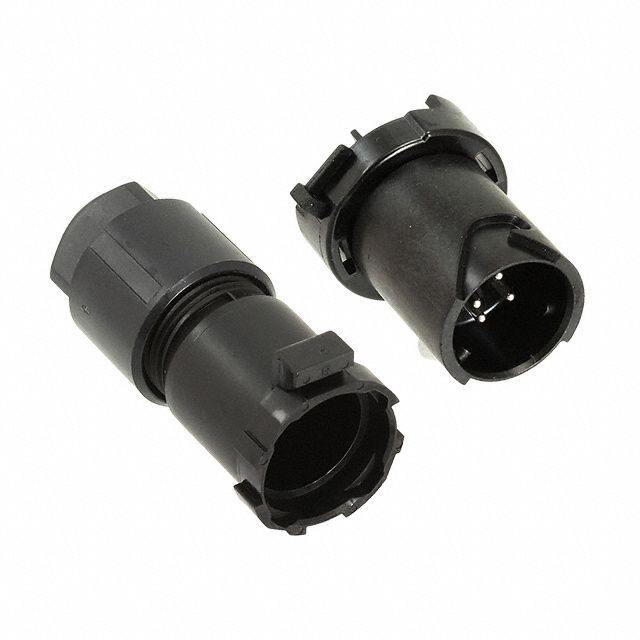

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | JN1 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Interface Connector Category | Receptacle, Male Pins | |
| Switch Position Options | 4 (3 + PE) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Insert Shell Dimension | S | |
| Military Shell Standard | - | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Installation Mount Type | - | |
| Circuit End Method | Solder Cup | |
| Secure Attachment Method | Push-Twist | |
| Installation Orientation | N (Normal) | |
| Main Construction Material | Plastic | |
| Connector Housing Alloy | Synthetic Resin | |
| Connector Shell Coating | - | |
| Engaging Pin Coating | Silver | |
| Visual Hue | Black | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Fire Resistance Classification | - | |
| Key Product Highlights | Backshell | |
| Electromagnetic Interference Protection | - | |
| Ampere Capacity Rating | 5A | |
| Max Voltage Specification | 200VAC | |
| Entry Port Size | 0.224" ~ 0.287" (5.70mm ~ 7.30mm) | |
| Ambient Temp Range | -20°C ~ 125°C |
Description
Supports a cable opening size of 0.224" ~ 0.287" (5.70mm ~ 7.30mm) for convenient entry. Offered in a shade referred to as Black to enhance the system's aesthetics. Features a connector type acknowledged as Receptacle, Male Pins. Offers mating contact finish rated at Silver. Sets the ampere rating to 5A. Utilizes a fastening type recognized as Push-Twist. Equipped with features categorized as Backshell. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Mounting configuration Free Hanging (In-Line) for structural stability. Overall number of positions 4 (3 + PE) for switches or mechanical components. Temperature range -20°C ~ 125°C for environmental conditions impacting thermal efficiency. Alignment N (Normal) for proper installation or signal positioning. Type of housing Bulk for safeguarding or transporting components. Primary material Plastic for structural and functional applications. Product status Active concerning availability and lifecycle. Classification series for the product or component JN1. Material makeup of the housing Synthetic Resin for thermal and mechanical properties. Provide shell dimensions S to ensure connector compatibility. Termination method Solder Cup for electrical or mechanical connections. Voltage specification 200VAC for electronic devices.
