Attribute
Description
Manufacturer Part Number
1747038-9
Manufacturer
Description

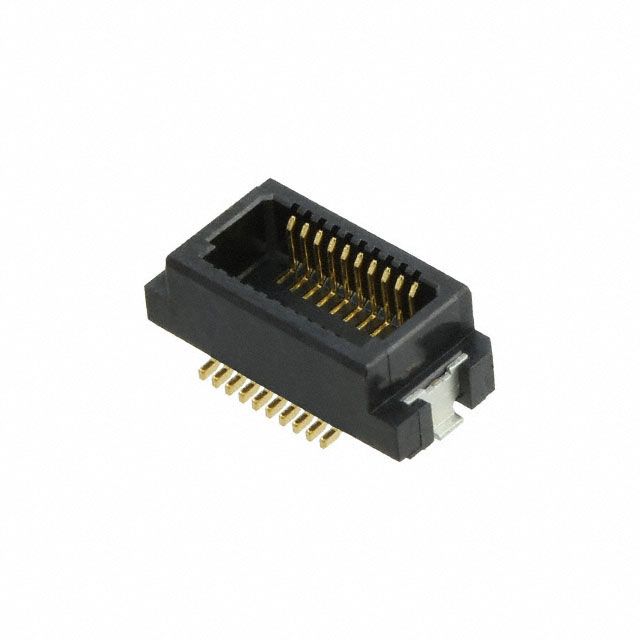

CONN PLUG 20POS SMD
Manufacturer Lead Time
--
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Fine Mate | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Interface Connector Category | Plug, Outer Shroud Contacts | |
| Switch Position Options | 20 | |
| Component Spacing Distance | 0.020" (0.50mm) | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Surface Mount | |
| Key Product Highlights | Solder Retention | |
| Pin Surface Treatment | - | |
| Pin Coating Depth | - | |
| Compatible Stack Heights | 4.5mm | |
| PCB Clearance Height | - |
Description
Features a connector type acknowledged as Plug, Outer Shroud Contacts. Equipped with features categorized as Solder Retention. Stack height compatibility 4.5mm for correct connector alignment. Mounting configuration Surface Mount for structural stability. Overall number of positions 20 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Distance 0.020" (0.50mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component Fine Mate.
