Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Interface Connector Category | Receptacle, Non-Gendered | |
| Switch Position Options | 12 | |
| Component Spacing Distance | 0.049" (1.25mm) | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Key Product Highlights | Board Lock | |
| Pin Surface Treatment | Tin | |
| Pin Coating Depth | 31.5µin (0.80µm) | |
| Compatible Stack Heights | - | |
| PCB Clearance Height | 0.213" (5.40mm) |
Description

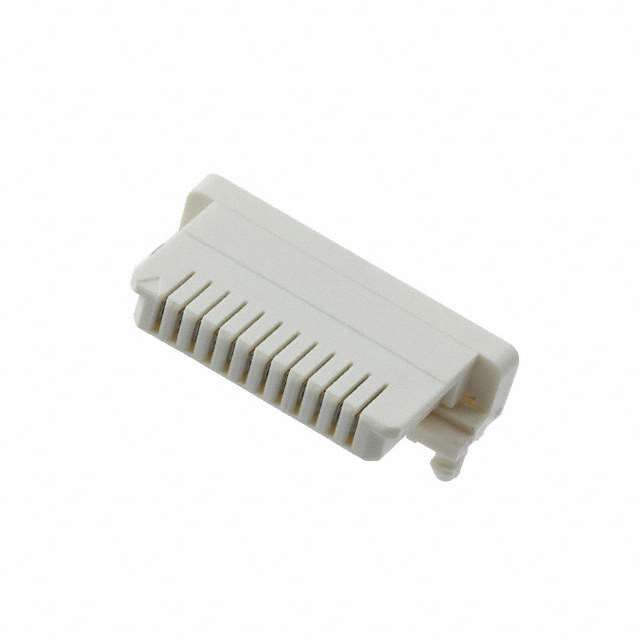

Features a connector type acknowledged as Receptacle, Non-Gendered. Includes contact finish plated at Tin to improve conductivity. Represents the thickness of the contact finish recorded at 31.5µin (0.80µm). Equipped with features categorized as Board Lock. Maintains a height of 0.213" (5.40mm) above the board to accommodate assembly and clearance requirements. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 12 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Distance 0.049" (1.25mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle.
