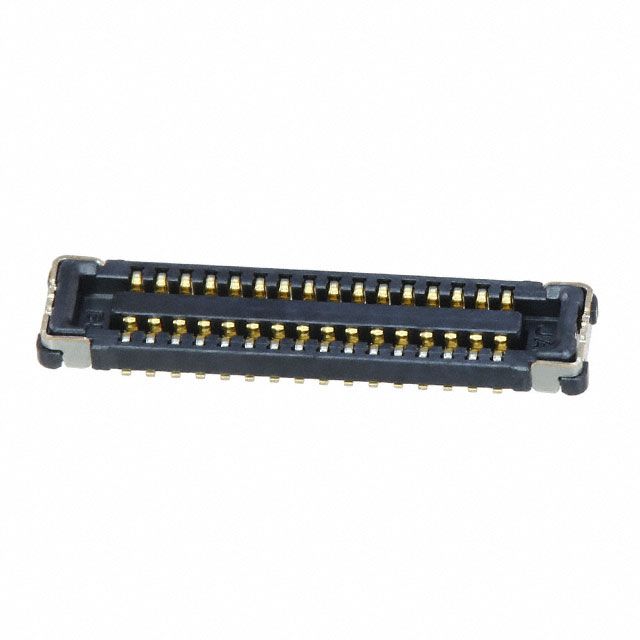

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WP9 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Interface Connector Category | Receptacle, Center Strip Contacts | |
| Switch Position Options | 32 | |
| Component Spacing Distance | 0.016" (0.40mm) | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Surface Mount | |
| Key Product Highlights | Solder Retention | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 4.00µin (0.100µm) | |
| Compatible Stack Heights | 0.8mm | |
| PCB Clearance Height | 0.031" (0.80mm) |
Description
Features a connector type acknowledged as Receptacle, Center Strip Contacts. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 4.00µin (0.100µm). Equipped with features categorized as Solder Retention. Maintains a height of 0.031" (0.80mm) above the board to accommodate assembly and clearance requirements. Stack height compatibility 0.8mm for correct connector alignment. Mounting configuration Surface Mount for structural stability. Overall number of positions 32 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Distance 0.016" (0.40mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component WP9.
