Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | WP7 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Interface Connector Category | Plug, Outer Shroud Contacts | |
| Switch Position Options | 20 | |
| Component Spacing Distance | 0.016" (0.40mm) | |
| Grid Row Count | 2 | |
| Attachment Mounting Style | Surface Mount | |
| Key Product Highlights | Solder Retention | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 4.00µin (0.100µm) | |
| Compatible Stack Heights | 0.7mm | |
| PCB Clearance Height | 0.020" (0.50mm) |
Description

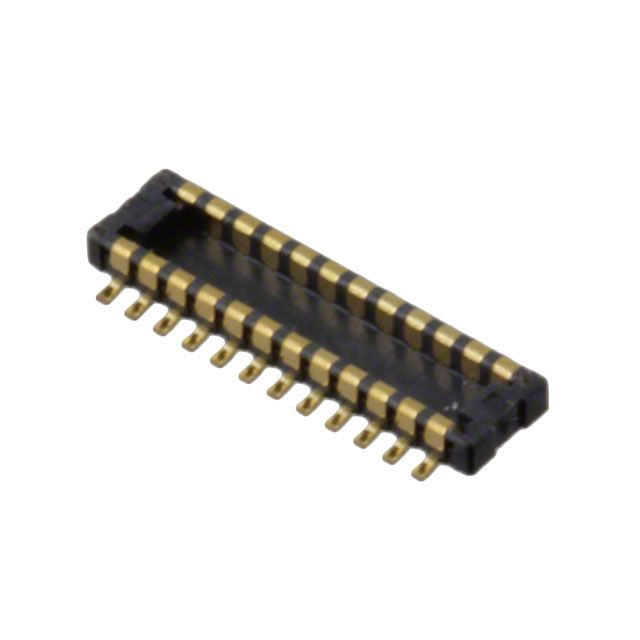

Features a connector type acknowledged as Plug, Outer Shroud Contacts. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 4.00µin (0.100µm). Equipped with features categorized as Solder Retention. Maintains a height of 0.020" (0.50mm) above the board to accommodate assembly and clearance requirements. Stack height compatibility 0.7mm for correct connector alignment. Mounting configuration Surface Mount for structural stability. Overall number of positions 20 for switches or mechanical components. Overall rows 2 for setting up matrices or displays. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Distance 0.016" (0.40mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component WP7.
