Stock:
Distributor: 135
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 130.83000 | ₹ 13,08,300.00 |
| 1000 | ₹ 138.84000 | ₹ 1,38,840.00 |
| 500 | ₹ 147.74000 | ₹ 73,870.00 |
| 100 | ₹ 155.75000 | ₹ 15,575.00 |
| 25 | ₹ 163.76000 | ₹ 4,094.00 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 163.54000 | ₹ 16,35,400.00 |
| 1000 | ₹ 173.55000 | ₹ 1,73,550.00 |
| 500 | ₹ 184.68000 | ₹ 92,340.00 |
| 172 | ₹ 194.69000 | ₹ 33,486.68 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Bulk | |
| Availability Status | Obsolete | |
| Device Type Classification | TxRx Only | |
| Radio Frequency Protocol | General ISM > 1GHz | |
| Communication Standard | - | |
| Signal Modulation Technique | 2FSK, GFSK, MSK, OOK | |
| Oscillation Rate Hz | 2.4GHz | |
| Maximum Data Throughput | 500kBaud | |
| Output Wattage Rating | 1dBm | |
| Response Sensitivity Level | -104dBm | |
| Total Memory Bytes | - | |
| Serial Communication Ports | SPI | |
| General Purpose I/O Pins | - | |
| Power Supply Voltage | 1.8V ~ 3.6V | |
| Receive Mode Amps | 13.3mA ~ 19.6mA | |
| Transmit Mode Amps | 11.1mA ~ 21.5mA | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

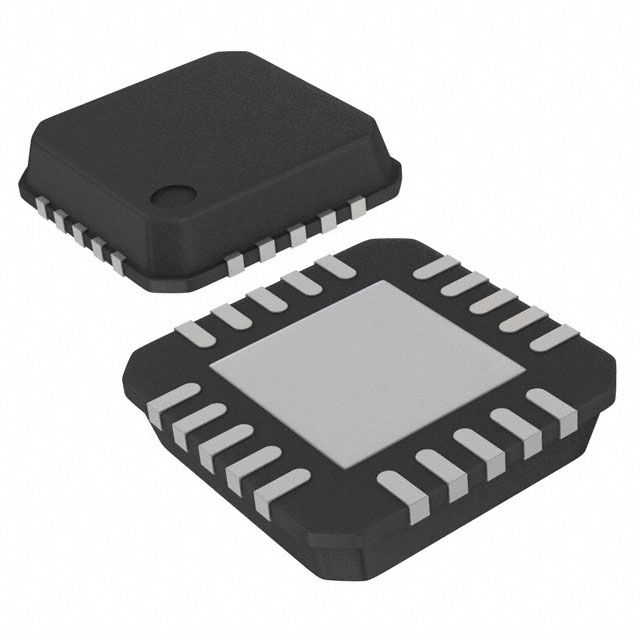

| Component Housing Style | 20-VFQFN Exposed Pad | |
| Vendor Package Type | 20-QFN (4x4) |
Description
Operates with the receiving current set to 13.3mA ~ 19.6mA. Features transmitting current rated at 11.1mA ~ 21.5mA. Provides a maximum data rate potential of 500kBaud. Runs at a frequency of 2.4GHz. Communication modulation technique 2FSK, GFSK, MSK, OOK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Bulk for safeguarding or transporting components. Style of the enclosure/case 20-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 20-QFN (4x4) that preserves the integrity of the device. The necessary output power 1dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol General ISM > 1GHz for communication standards. Rating for the sensitivity of sensor or input response -104dBm. Ports designated for serial communication interfaces SPI. Supplier package type 20-QFN (4x4) for component selection. Voltage requirement 1.8V ~ 3.6V for electrical specifications. Type classification TxRx Only for specifications. Voltage supply 1.8V ~ 3.6V for device operation.
