Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Device Type Classification | TxRx + MCU | |
| Radio Frequency Protocol | 802.15.4, General ISM < 1GHz | |
| Communication Standard | 6LoWPAN, Zigbee® | |
| Signal Modulation Technique | DSSS, BPSK, O-QPSK | |
| Oscillation Rate Hz | 769MHz ~ 935MHz | |
| Maximum Data Throughput | 1Mbps | |
| Output Wattage Rating | 10dBm | |
| Response Sensitivity Level | -110dBm | |
| Total Memory Bytes | 256kB Flash, 4kB EEPROM, 8kB RAM | |
| Serial Communication Ports | SPI | |
| General Purpose I/O Pins | 54 | |
| Power Supply Voltage | 1.8V ~ 3.6V | |
| Receive Mode Amps | 8.7mA ~ 9.2mA | |
| Transmit Mode Amps | 13mA ~ 25mA | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

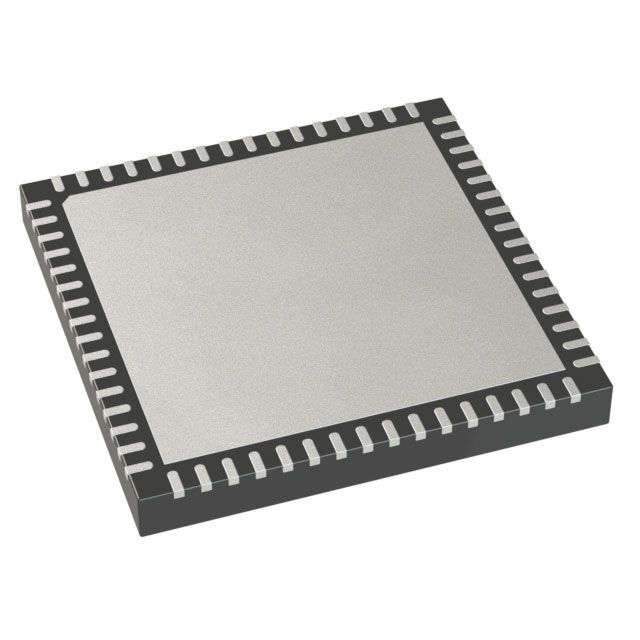

| Component Housing Style | 64-VFQFN Exposed Pad | |
| Vendor Package Type | 64-QFN (9x9) |
Description
Operates with the receiving current set to 8.7mA ~ 9.2mA. Features transmitting current rated at 13mA ~ 25mA. Provides a maximum data rate potential of 1Mbps. Runs at a frequency of 769MHz ~ 935MHz. Provides 54 GPIO pins for flexible input/output interfacing. Total memory size 256kB Flash, 4kB EEPROM, 8kB RAM for device storage capability. Communication modulation technique DSSS, BPSK, O-QPSK for data transmission. Mounting configuration Surface Mount for structural stability. Overall I/O 54 for digital links. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 64-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 64-QFN (9x9) that preserves the integrity of the device. The necessary output power 10dBm for peak device efficiency. Product status Active concerning availability and lifecycle. Protocol for communication 6LoWPAN, Zigbee® for control or interaction. Type or family of RF protocol 802.15.4, General ISM < 1GHz for communication standards. Rating for the sensitivity of sensor or input response -110dBm. Ports designated for serial communication interfaces SPI. Supplier package type 64-QFN (9x9) for component selection. Voltage requirement 1.8V ~ 3.6V for electrical specifications. Type classification TxRx + MCU for specifications. Voltage supply 1.8V ~ 3.6V for device operation.
