Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | TxRx + MCU | |
| Radio Frequency Protocol | Bluetooth | |
| Communication Standard | Bluetooth v4.1 | |
| Signal Modulation Technique | - | |
| Oscillation Rate Hz | 2.4GHz | |
| Maximum Data Throughput | 3.4Mbps | |
| Output Wattage Rating | 3.5dBm | |
| Response Sensitivity Level | -96dBm | |
| Total Memory Bytes | 128kB ROM, 128kB RAM | |
| Serial Communication Ports | I2C, SPI, UART | |
| General Purpose I/O Pins | 13 | |
| Power Supply Voltage | 1.8V ~ 4.3V | |
| Receive Mode Amps | 4mA | |
| Transmit Mode Amps | 3mA | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

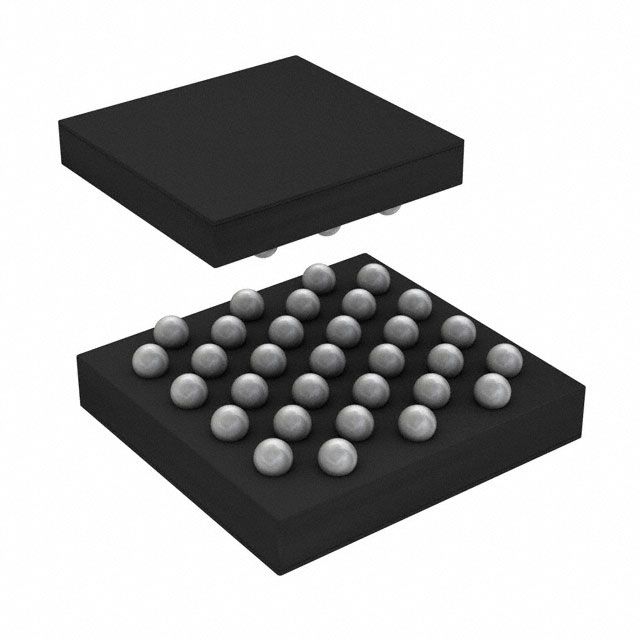

| Component Housing Style | 31-UFBGA, WLCSP | |
| Vendor Package Type | 31-WLCSP (2.26x2.14) |
Description
Operates with the receiving current set to 4mA. Features transmitting current rated at 3mA. Provides a maximum data rate potential of 3.4Mbps. Runs at a frequency of 2.4GHz. Provides 13 GPIO pins for flexible input/output interfacing. Total memory size 128kB ROM, 128kB RAM for device storage capability. Mounting configuration Surface Mount for structural stability. Overall I/O 13 for digital links. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 31-UFBGA, WLCSP that offers mechanical and thermal protection. Type of package 31-WLCSP (2.26x2.14) that preserves the integrity of the device. The necessary output power 3.5dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication Bluetooth v4.1 for control or interaction. Type or family of RF protocol Bluetooth for communication standards. Rating for the sensitivity of sensor or input response -96dBm. Ports designated for serial communication interfaces I2C, SPI, UART. Supplier package type 31-WLCSP (2.26x2.14) for component selection. Voltage requirement 1.8V ~ 4.3V for electrical specifications. Type classification TxRx + MCU for specifications. Voltage supply 1.8V ~ 4.3V for device operation.
