Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | TxRx + MCU | |
| Radio Frequency Protocol | General ISM < 1GHz | |
| Communication Standard | SIGFOX™ | |
| Signal Modulation Technique | DBSPK, GFSK | |
| Oscillation Rate Hz | 868MHz | |
| Maximum Data Throughput | 600bps | |
| Output Wattage Rating | 14dBm | |
| Response Sensitivity Level | -121.5dBm | |
| Total Memory Bytes | - | |
| Serial Communication Ports | SPI | |
| General Purpose I/O Pins | - | |
| Power Supply Voltage | 1.9V ~ 3.6V, 2.4V ~ 5.5V | |
| Receive Mode Amps | 10.4mA | |
| Transmit Mode Amps | 32.7mA | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

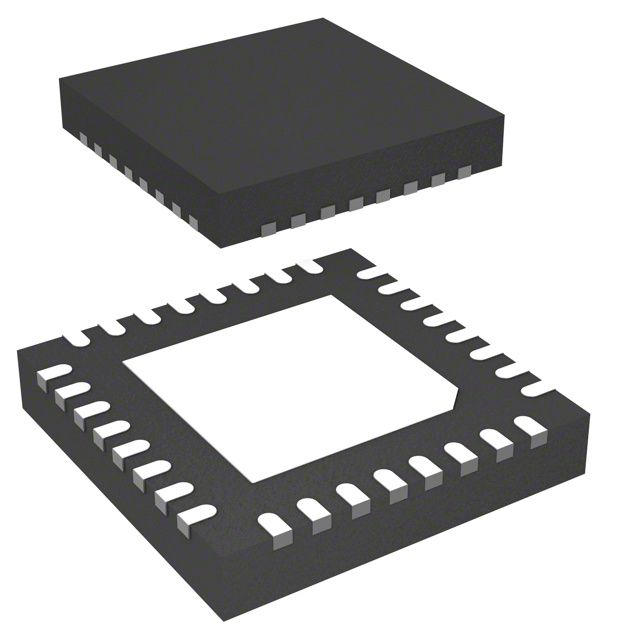

| Component Housing Style | 32-VFQFN Exposed Pad | |
| Vendor Package Type | 32-VQFN (5x5) |
Description
Operates with the receiving current set to 10.4mA. Features transmitting current rated at 32.7mA. Provides a maximum data rate potential of 600bps. Runs at a frequency of 868MHz. Communication modulation technique DBSPK, GFSK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 32-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 32-VQFN (5x5) that preserves the integrity of the device. The necessary output power 14dBm for peak device efficiency. Product status Active concerning availability and lifecycle. Protocol for communication SIGFOX™ for control or interaction. Type or family of RF protocol General ISM < 1GHz for communication standards. Rating for the sensitivity of sensor or input response -121.5dBm. Ports designated for serial communication interfaces SPI. Supplier package type 32-VQFN (5x5) for component selection. Voltage requirement 1.9V ~ 3.6V, 2.4V ~ 5.5V for electrical specifications. Type classification TxRx + MCU for specifications. Voltage supply 1.9V ~ 3.6V, 2.4V ~ 5.5V for device operation.
