Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Strip | |
| Wireless RF Category | 802.11/WiFi, WLAN | |
| Circuit Topology Design | Reflective | |
| Electrical Pathway | SPDT | |
| Operational Hz Spectrum | 100MHz ~ 8GHz | |
| Electrical Separation Rating | 31dB | |
| Signal Insertion Attenuation | 0.73dB | |
| Benchmark Hz Rate | 6GHz ~ 8GHz | |
| 1dB Compression Point | 39dBm | |
| Third-Order Intercept Point | 69dBm | |
| Key Product Highlights | - | |
| AC Resistance Value | 50Ohm | |
| Power Supply Voltage | 2.7V ~ 5.5V | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

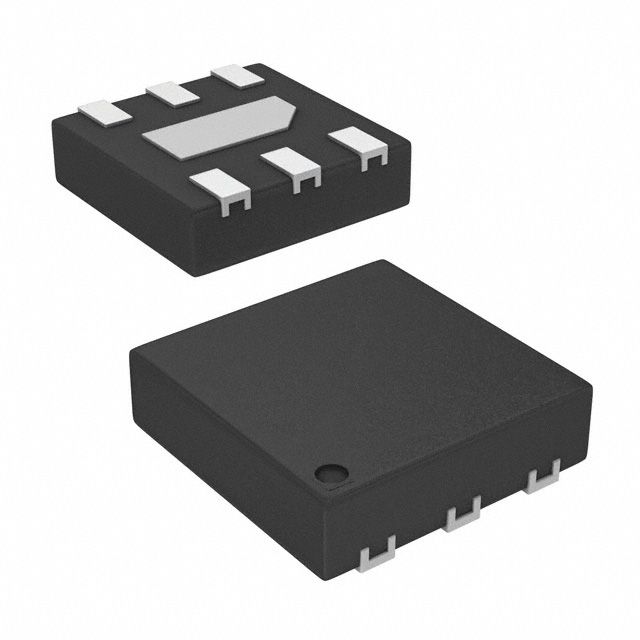

| Component Housing Style | 6-UFDFN Exposed Pad | |
| Vendor Package Type | 6-DFN (1.5x1.5) |
Description
Configured for circuit type described as SPDT. Offers a 100MHz ~ 8GHz frequency spectrum for broad-spectrum applications. Supports 69dBm IIP3 to maintain linearity and RF performance. Configured with 50Ohm impedance to maintain signal quality. Offers 0.73dB insertion loss to minimize signal attenuation. Offers 31dB isolation to prevent electrical interference. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. P1dB 39dBm representing the operational capability of the RF amplifier. Type of housing Strip for safeguarding or transporting components. Style of the enclosure/case 6-UFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 6-DFN (1.5x1.5) that preserves the integrity of the device. The category of RF 802.11/WiFi, WLAN for frequency and modulation specifications. Supplier package type 6-DFN (1.5x1.5) for component selection. Voltage requirement 2.7V ~ 5.5V for electrical specifications. Frequency rate 6GHz ~ 8GHz for assessing performance. Layout design Reflective for electrical systems or configurations. Voltage supply 2.7V ~ 5.5V for device operation.
