Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 15000 | ₹ 49.05000 | ₹ 7,35,750.00 |
| 6000 | ₹ 50.83000 | ₹ 3,04,980.00 |
| 3000 | ₹ 54.40000 | ₹ 1,63,200.00 |
| 1000 | ₹ 54.40000 | ₹ 54,400.00 |
| 101 | ₹ 59.75000 | ₹ 6,034.75 |
| 1 | ₹ 65.10000 | ₹ 65.10 |
Stock:
Distributor: 145
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 595 | ₹ 51.91000 | ₹ 30,886.45 |
| 480 | ₹ 54.07000 | ₹ 25,953.60 |
| 370 | ₹ 56.23000 | ₹ 20,805.10 |
| 255 | ₹ 60.55000 | ₹ 15,440.25 |
| 165 | ₹ 62.71000 | ₹ 10,347.15 |
| 80 | ₹ 67.03000 | ₹ 5,362.40 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 64.97000 | ₹ 64.97 |
| 100 | ₹ 59.63000 | ₹ 5,963.00 |
| 1000 | ₹ 54.29000 | ₹ 54,290.00 |
| 3000 | ₹ 54.29000 | ₹ 1,62,870.00 |
| 6000 | ₹ 50.73000 | ₹ 3,04,380.00 |
| 9000 | ₹ 48.95000 | ₹ 4,40,550.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | UltraCMOS® | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Wireless RF Category | CATV | |
| Circuit Topology Design | Absorptive | |
| Electrical Pathway | SPDT | |
| Operational Hz Spectrum | 5MHz ~ 2.2GHz | |
| Electrical Separation Rating | 57dB | |
| Signal Insertion Attenuation | 1.7dB | |
| Benchmark Hz Rate | 2.2GHz | |
| 1dB Compression Point | 23.5dBm | |
| Third-Order Intercept Point | 47.5dBm | |
| Key Product Highlights | - | |
| AC Resistance Value | 75Ohm | |
| Power Supply Voltage | 2.7V ~ 3.63V | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

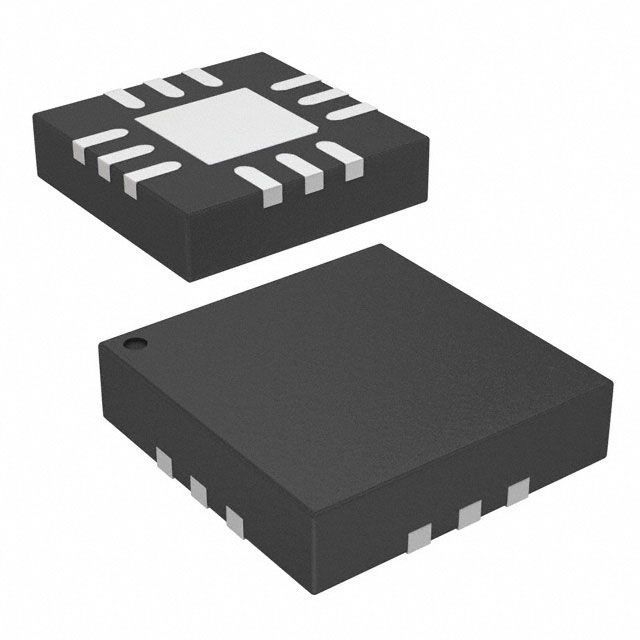

| Component Housing Style | 12-WFQFN Exposed Pad | |
| Vendor Package Type | 12-QFN (3x3) |
Description
Configured for circuit type described as SPDT. Offers a 5MHz ~ 2.2GHz frequency spectrum for broad-spectrum applications. Supports 47.5dBm IIP3 to maintain linearity and RF performance. Configured with 75Ohm impedance to maintain signal quality. Offers 1.7dB insertion loss to minimize signal attenuation. Offers 57dB isolation to prevent electrical interference. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. P1dB 23.5dBm representing the operational capability of the RF amplifier. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 12-WFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 12-QFN (3x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The category of RF CATV for frequency and modulation specifications. Classification series for the product or component UltraCMOS®. Supplier package type 12-QFN (3x3) for component selection. Voltage requirement 2.7V ~ 3.63V for electrical specifications. Frequency rate 2.2GHz for assessing performance. Layout design Absorptive for electrical systems or configurations. Voltage supply 2.7V ~ 3.63V for device operation.
