Description

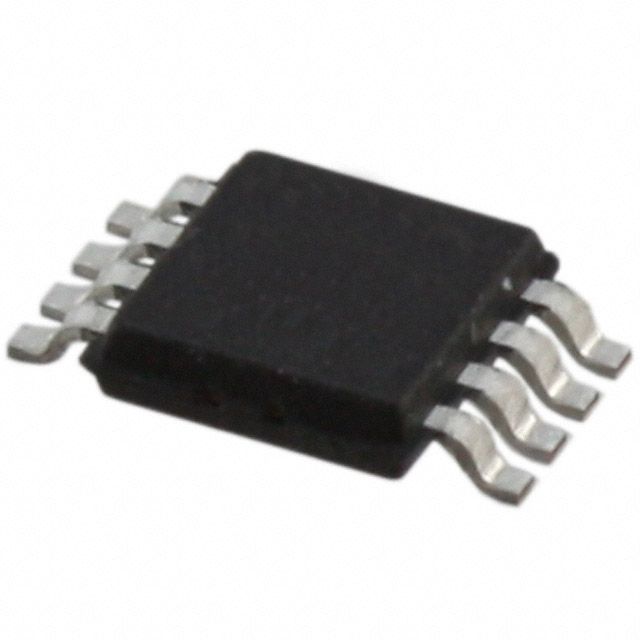

Configured for circuit type described as SPDT. Equipped with features categorized as DC Blocked, Single/Dual Line Control. Offers a 10MHz ~ 3GHz frequency spectrum for broad-spectrum applications. Supports 59dBm IIP3 to maintain linearity and RF performance. Configured with 50Ohm impedance to maintain signal quality. Offers 0.75dB insertion loss to minimize signal attenuation. Offers 43dB isolation to prevent electrical interference. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. P1dB 30.5dBm representing the operational capability of the RF amplifier. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 8-MSOP-EP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. The category of RF General Purpose for frequency and modulation specifications. Classification series for the product or component UltraCMOS®, HaRP™. Supplier package type 8-MSOP-EP for component selection. Voltage requirement 3V ~ 3.6V, 4.5V ~ 5.5V for electrical specifications. Frequency rate 3GHz for assessing performance. Layout design Absorptive for electrical systems or configurations. Voltage supply 3V ~ 3.6V, 4.5V ~ 5.5V for device operation.
