Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Wireless RF Category | VSAT | |
| Circuit Topology Design | Absorptive | |
| Electrical Pathway | SPDT | |
| Operational Hz Spectrum | 0Hz ~ 6GHz | |
| Electrical Separation Rating | 46dB | |
| Signal Insertion Attenuation | 1.4dB | |
| Benchmark Hz Rate | 4GHz | |
| 1dB Compression Point | 27dBm | |
| Third-Order Intercept Point | 49dBm | |
| Key Product Highlights | - | |
| AC Resistance Value | 50Ohm | |
| Power Supply Voltage | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | - | |

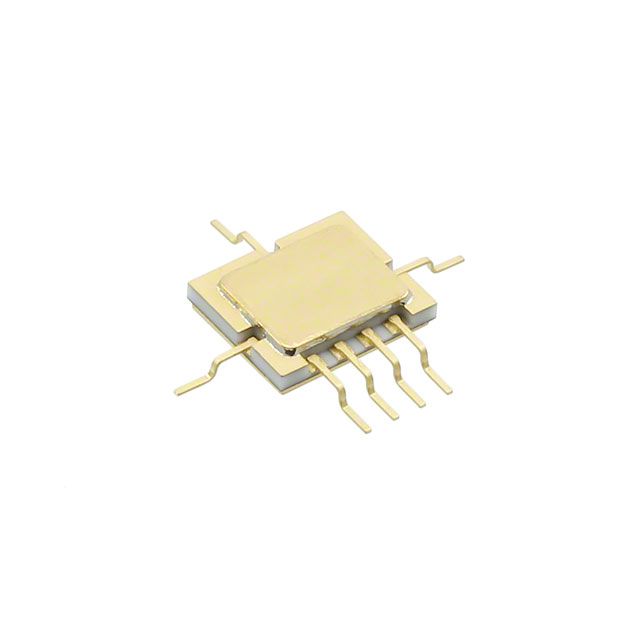

| Component Housing Style | 7-SMD, Gull Wing | |
| Vendor Package Type | 7-SMD |
Description
Configured for circuit type described as SPDT. Offers a 0Hz ~ 6GHz frequency spectrum for broad-spectrum applications. Supports 49dBm IIP3 to maintain linearity and RF performance. Configured with 50Ohm impedance to maintain signal quality. Offers 1.4dB insertion loss to minimize signal attenuation. Offers 46dB isolation to prevent electrical interference. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. P1dB 27dBm representing the operational capability of the RF amplifier. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 7-SMD, Gull Wing that offers mechanical and thermal protection. Type of package 7-SMD that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. The category of RF VSAT for frequency and modulation specifications. Supplier package type 7-SMD for component selection. Frequency rate 4GHz for assessing performance. Layout design Absorptive for electrical systems or configurations.
