Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40000 | ₹ 13.11000 | ₹ 5,24,400.00 |
| 28000 | ₹ 13.22000 | ₹ 3,70,160.00 |
| 20000 | ₹ 13.34000 | ₹ 2,66,800.00 |
| 12000 | ₹ 13.55000 | ₹ 1,62,600.00 |
| 8000 | ₹ 13.74000 | ₹ 1,09,920.00 |
| 4000 | ₹ 14.11000 | ₹ 56,440.00 |
| 1000 | ₹ 15.12000 | ₹ 15,120.00 |
| 500 | ₹ 15.79000 | ₹ 7,895.00 |
| 250 | ₹ 16.60000 | ₹ 4,150.00 |
| 100 | ₹ 17.95000 | ₹ 1,795.00 |
| 25 | ₹ 20.80000 | ₹ 520.00 |
| 10 | ₹ 23.37000 | ₹ 233.70 |
| 1 | ₹ 33.89000 | ₹ 33.89 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Diplexer | |
| Low/High Frequency Bands | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 7.15GHz | |
| Low Frequency Attenuation dB | 45.00dB / 50.00dB | |
| High Frequency Attenuation dB | 22.00dB / 25.00dB | |
| Band-Specific Return Loss | 9.5dB / 9.5dB | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

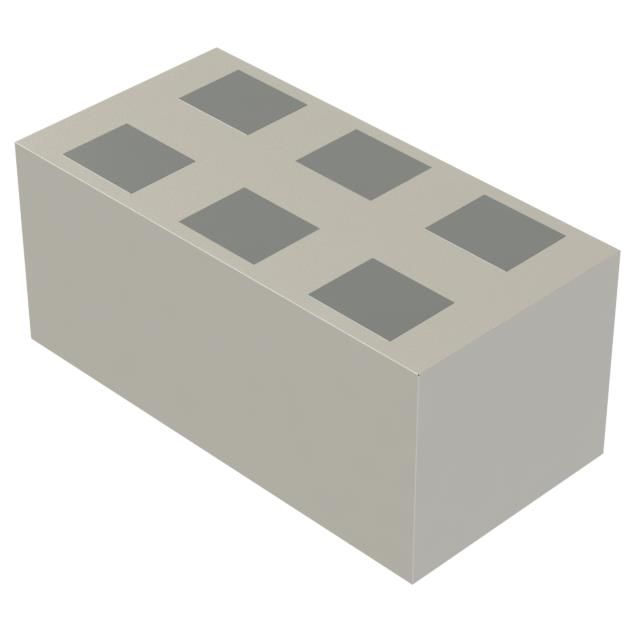

| Component Housing Style | 0603 (1608 Metric), 6 PC Pad |
Description
Facilitates a maximum output current level set as 2.4GHz ~ 2.5GHz / 4.9GHz ~ 7.15GHz. Operates within 2.4GHz ~ 2.5GHz / 4.9GHz ~ 7.15GHz low and high frequency bands for various applications. Provides an attenuation of 22.00dB / 25.00dB dB within the high frequency range for efficient signal handling. The dB reduction at low frequencies 45.00dB / 50.00dB for effective signal handling. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0603 (1608 Metric), 6 PC Pad that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Return loss in the specified low/high frequency band 9.5dB / 9.5dB for RF performance. Type classification Diplexer for specifications.
