Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |

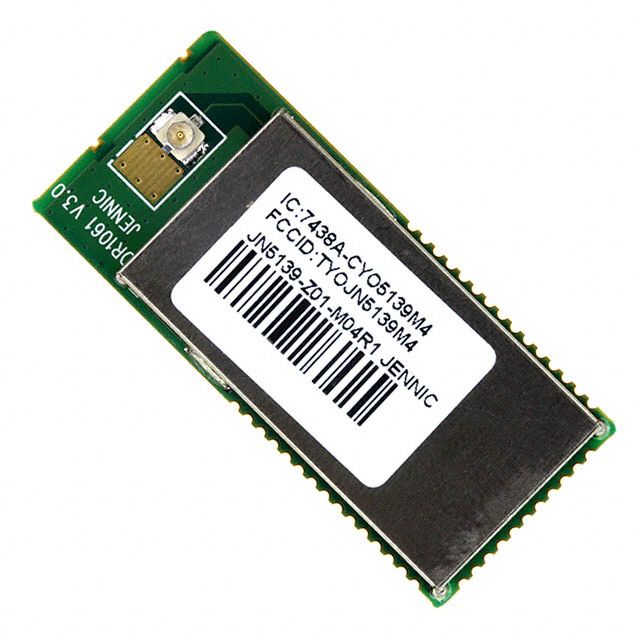

| Product Series Line | JN5139-Z01-M0x | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | 802.15.4 | |
| Communication Standard | Zigbee® | |
| Signal Modulation Technique | - | |
| Oscillation Rate Hz | 2.4GHz | |
| Transfer Speed Mbps | - | |
| Output Wattage Rating | 19dBm | |
| Response Sensitivity Level | -100dBm | |
| Serial Communication Ports | I2C, SPI, UART | |
| RF Antenna Design | Antenna Not Included, U.FL | |
| Core Integrated Circuit | - | |
| Total Memory Bytes | 192kB ROM, 96kB RAM | |
| Power Supply Voltage | 2.2V ~ 3.6V | |
| Receive Mode Amps | 45mA | |
| Transmit Mode Amps | 125mA | |
| Attachment Mounting Style | Surface Mount | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Component Housing Style | Module |
Description
Utilizes a Antenna Not Included, U.FL antenna style for improved signal capture. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Operates with the receiving current set to 45mA. Features transmitting current rated at 125mA. Runs at a frequency of 2.4GHz. Total memory size 192kB ROM, 96kB RAM for device storage capability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Module that offers mechanical and thermal protection. The necessary output power 19dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication Zigbee® for control or interaction. Type or family of RF protocol 802.15.4 for communication standards. Rating for the sensitivity of sensor or input response -100dBm. Ports designated for serial communication interfaces I2C, SPI, UART. Classification series for the product or component JN5139-Z01-M0x. Voltage requirement 2.2V ~ 3.6V for electrical specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Voltage supply 2.2V ~ 3.6V for device operation.
