Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

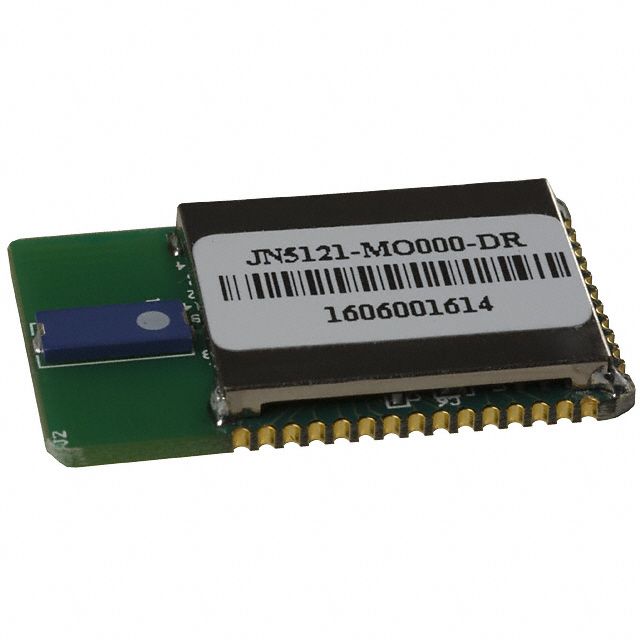

| Product Series Line | JN5121-000-M0xx | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | 802.15.4 | |
| Communication Standard | Zigbee® | |
| Signal Modulation Technique | - | |
| Oscillation Rate Hz | 2.4GHz | |
| Transfer Speed Mbps | - | |
| Output Wattage Rating | 0dBm | |
| Response Sensitivity Level | -90dBm | |
| Serial Communication Ports | I2C, SPI, UART | |
| RF Antenna Design | Integrated, Trace | |
| Core Integrated Circuit | - | |
| Total Memory Bytes | 64kB ROM, 96kB RAM | |
| Power Supply Voltage | 2.2V ~ 3.6V | |
| Receive Mode Amps | 50mA | |
| Transmit Mode Amps | 45mA | |
| Attachment Mounting Style | Surface Mount | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Component Housing Style | - |
Description
Utilizes a Integrated, Trace antenna style for improved signal capture. Operates with the receiving current set to 50mA. Features transmitting current rated at 45mA. Runs at a frequency of 2.4GHz. Total memory size 64kB ROM, 96kB RAM for device storage capability. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. The necessary output power 0dBm for peak device efficiency. Product status Obsolete concerning availability and lifecycle. Protocol for communication Zigbee® for control or interaction. Type or family of RF protocol 802.15.4 for communication standards. Rating for the sensitivity of sensor or input response -90dBm. Ports designated for serial communication interfaces I2C, SPI, UART. Classification series for the product or component JN5121-000-M0xx. Voltage requirement 2.2V ~ 3.6V for electrical specifications. Voltage supply 2.2V ~ 3.6V for device operation.
