Description

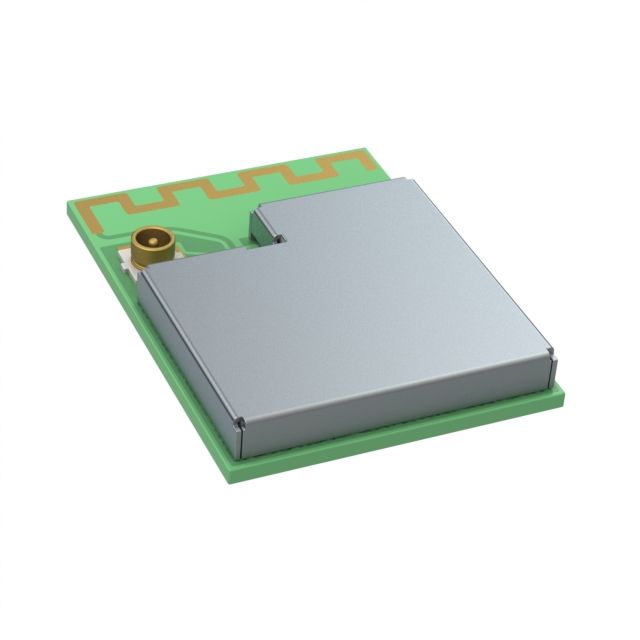

Utilizes a PCB Trace antenna style for improved signal capture. Operates with the receiving current set to 21.2mA ~ 43.9mA. Features transmitting current rated at 23.6mA ~ 146.7mA. Delivers a data transfer rate measured at 2Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 2Mbps. Runs at a frequency of 2.4GHz. Total memory size 1MB Flash, 128kB RAM for device storage capability. Communication modulation technique DSSS, MSK, O-QPSK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 39-SMD Module that offers mechanical and thermal protection. The necessary output power 20dBm for peak device efficiency. Product status Active concerning availability and lifecycle. Protocol for communication Bluetooth v5.2, Class 2, Thread, Zigbee® for control or interaction. Type or family of RF protocol 802.15.4, Bluetooth for communication standards. Rating for the sensitivity of sensor or input response -107.1dBm. Ports designated for serial communication interfaces ADC, I2C, PWM, QSPI, SPI, SWD, USART. Classification series for the product or component PIC32CX-BZ2. Voltage requirement 1.9V ~ 3.6V for electrical specifications. IC or component PIC32CX1012BZ25048- E/MYX utilized in circuit design. Voltage supply 1.9V ~ 3.6V for device operation.
