Description

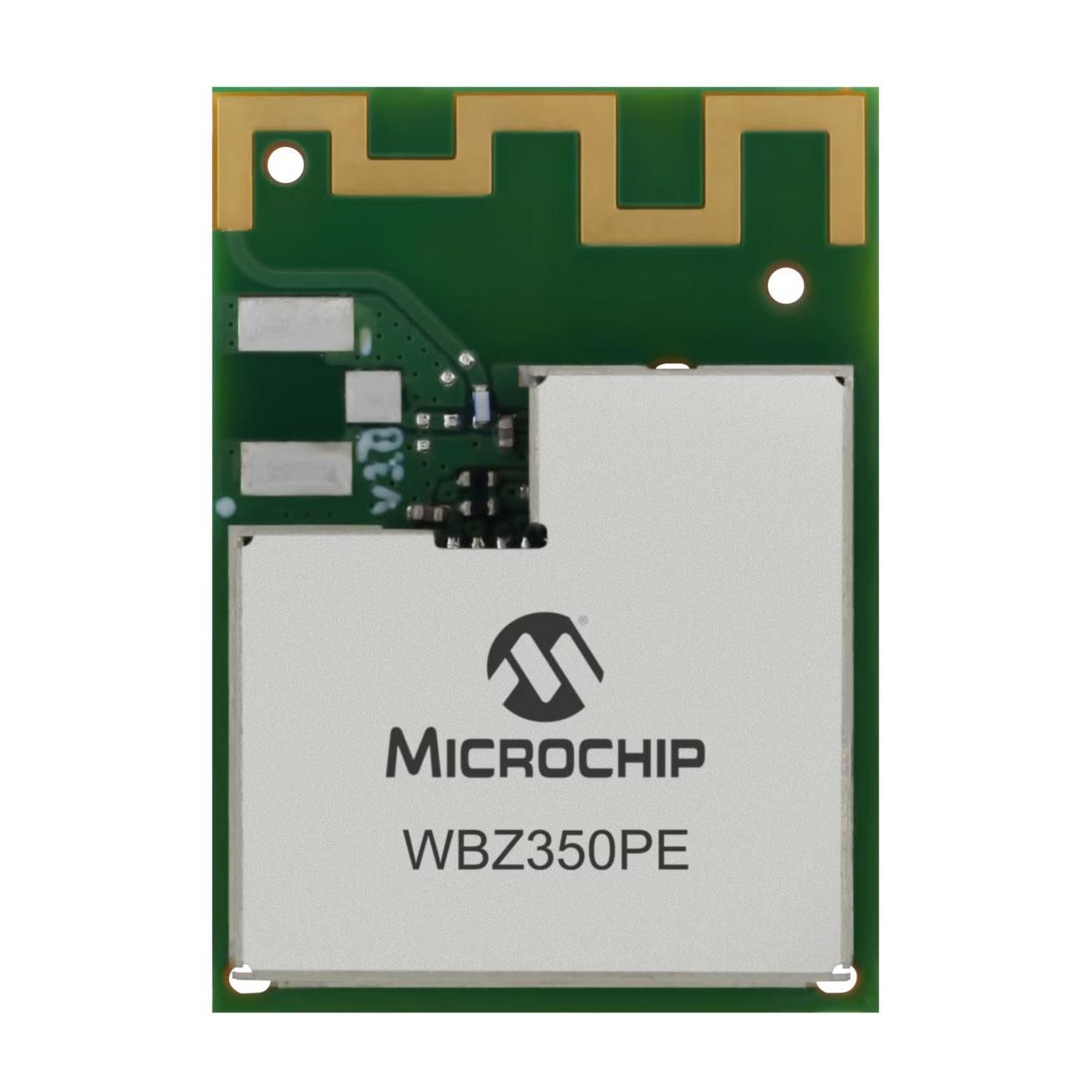

Utilizes a PCB Trace antenna style for improved signal capture. Operates with the receiving current set to 16mA ~ 20mA. Features transmitting current rated at 22mA ~ 49mA. Delivers a data transfer rate measured at 2Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 2Mbps. Runs at a frequency of 2.4GHz. Total memory size 512kB Flash, 96kB SRAM for device storage capability. Communication modulation technique GFSK, O-QPSK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 30-SMD Module that offers mechanical and thermal protection. The necessary output power 11dBm for peak device efficiency. Product status Active concerning availability and lifecycle. Protocol for communication Bluetooth v5.2, Zigbee® for control or interaction. Type or family of RF protocol 802.15.4, Bluetooth for communication standards. Rating for the sensitivity of sensor or input response -108dBm. Ports designated for serial communication interfaces ADC, DAC, GPIO, I2C, PWM, QSPI, RS485, SPI, USART. Classification series for the product or component PIC32CX-BZ3. Voltage requirement 1.9V ~ 3.6V for electrical specifications. IC or component PIC32CX5109BZ31032 utilized in circuit design. Voltage supply 1.9V ~ 3.6V for device operation.
