Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Sona™ NX611 | |
| IC Encapsulation Type | Strip | |
| Availability Status | Active | |
| Radio Frequency Protocol | Bluetooth, WiFi | |
| Communication Standard | 802.11a/b/g/n/ac/ax, Bluetooth v5.4 | |
| Signal Modulation Technique | 4DQPSK, 8DPSK, GFSK | |
| Oscillation Rate Hz | 2.4GHz, 5GHz | |
| Transfer Speed Mbps | 54Mbps | |
| Output Wattage Rating | 21dBm | |
| Response Sensitivity Level | -103dBm | |
| Serial Communication Ports | ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, UART | |
| RF Antenna Design | Antenna Not Included | |

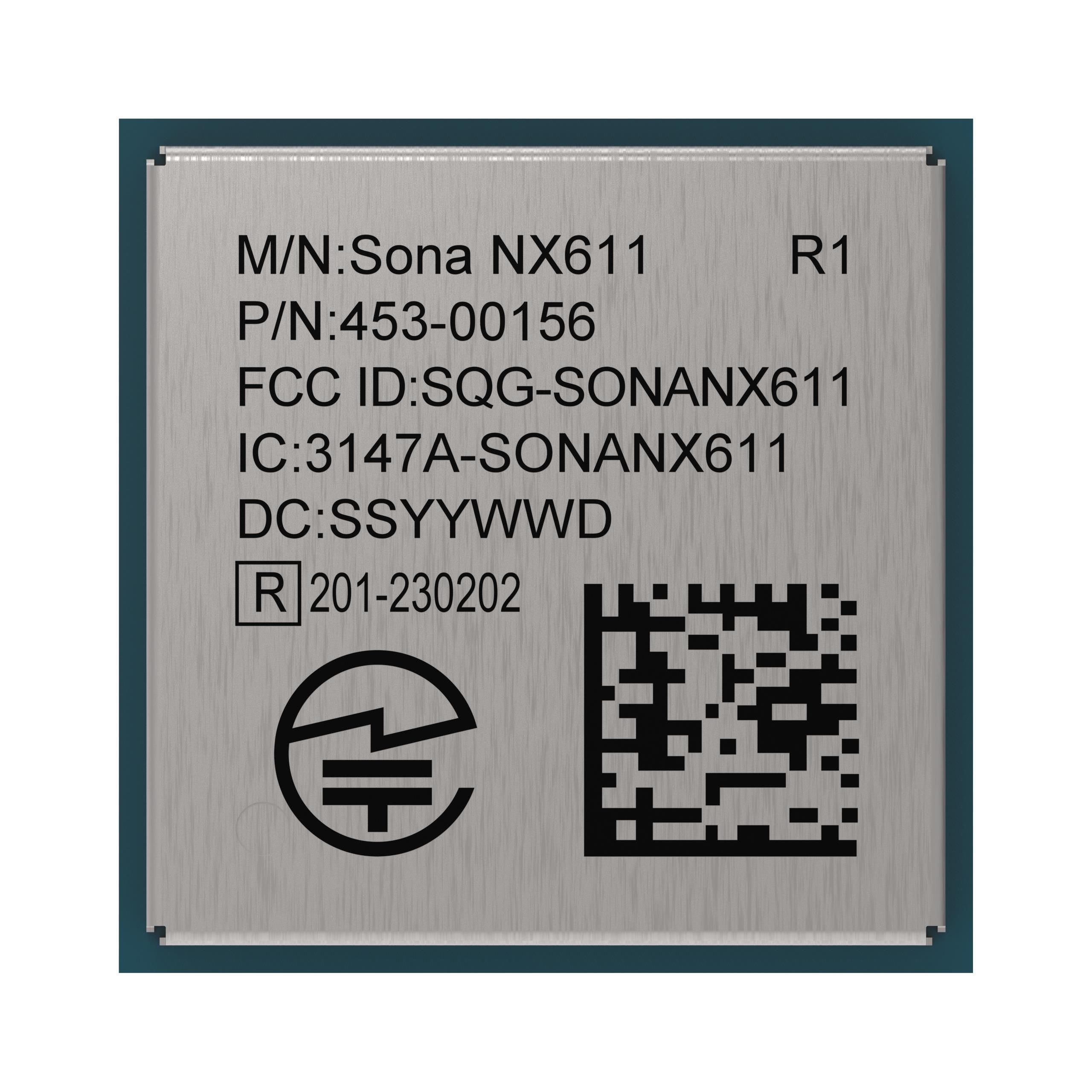

| Core Integrated Circuit | Sona NX611 SIP | |
| Total Memory Bytes | - | |
| Power Supply Voltage | 1.71V ~ 1.89V, 3.14V ~ 3.46V | |
| Receive Mode Amps | 0.009mA ~ 167mA | |
| Transmit Mode Amps | 0.009mA ~ 331mA | |
| Attachment Mounting Style | Surface Mount | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Component Housing Style | 101-SMD Module |
Description
Utilizes a Antenna Not Included antenna style for improved signal capture. Operates with the receiving current set to 0.009mA ~ 167mA. Features transmitting current rated at 0.009mA ~ 331mA. Delivers a data transfer rate measured at 54Mbps for rapid operations. Demonstrates a sampling rate capability indicated as 54Mbps. Runs at a frequency of 2.4GHz, 5GHz. Communication modulation technique 4DQPSK, 8DPSK, GFSK for data transmission. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Strip for safeguarding or transporting components. Style of the enclosure/case 101-SMD Module that offers mechanical and thermal protection. The necessary output power 21dBm for peak device efficiency. Product status Active concerning availability and lifecycle. Protocol for communication 802.11a/b/g/n/ac/ax, Bluetooth v5.4 for control or interaction. Type or family of RF protocol Bluetooth, WiFi for communication standards. Rating for the sensitivity of sensor or input response -103dBm. Ports designated for serial communication interfaces ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, UART. Classification series for the product or component Sona™ NX611. Voltage requirement 1.71V ~ 1.89V, 3.14V ~ 3.46V for electrical specifications. IC or component Sona NX611 SIP utilized in circuit design. Voltage supply 1.71V ~ 1.89V, 3.14V ~ 3.46V for device operation.
