Attribute
Description
Manufacturer Part Number
RFPCA430805IMLB301
Manufacturer
Description

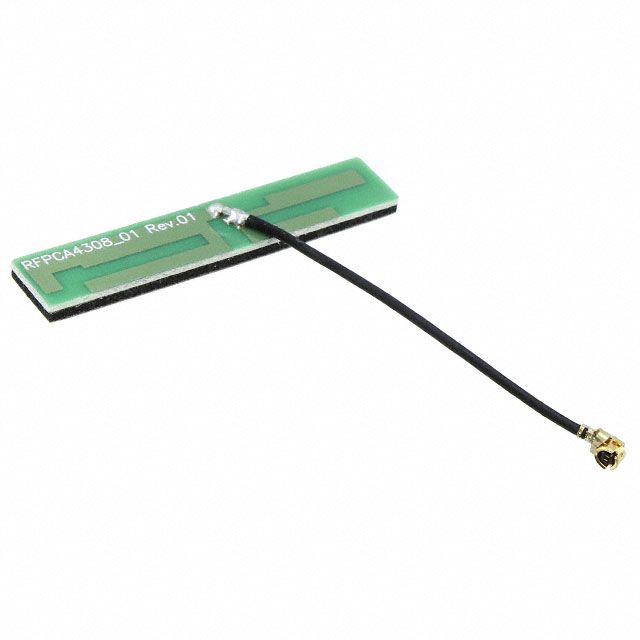

RF ANT 2.4GHZ/5.2GHZ PCB TRACE
Manufacturer Lead Time
--
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2000 | ₹ 165.54000 | ₹ 3,31,080.00 |
| 4000 | ₹ 160.20000 | ₹ 6,40,800.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 170.83000 | ₹ 85,415.00 |
| 250 | ₹ 176.75000 | ₹ 44,187.50 |
| 100 | ₹ 186.55000 | ₹ 18,655.00 |
| 25 | ₹ 207.16000 | ₹ 5,179.00 |
| 10 | ₹ 225.87000 | ₹ 2,258.70 |
| 1 | ₹ 301.17000 | ₹ 301.17 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Radio Frequency Protocol | - | |
| Frequency Classification | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | |
| Band Center Frequency | 2.4GHz, 5.2GHz, 5.8GHz | |
| Operational Hz Spectrum | - | |
| RF Antenna Design | PCB Trace | |
| Frequency Band Quantity | 3 | |
| Voltage Standing Wave Ratio | - | |
| Reflection Loss dB | - | |
| Amplification Factor | - | |
| Maximum Power Handling | - | |
| Key Product Highlights | - | |
| Circuit End Method | U.FL (UMCC), I-PEX MHF1 | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Adhesive | |
| Upper Height Limit | - | |
| Intended Uses | - |
Description
Utilizes a PCB Trace antenna style for improved signal capture. Offers a center frequency of 2.4GHz, 5.2GHz, 5.8GHz. Maintains a 2.4GHz, 5.2GHz, 5.8GHz center frequency for reliable signal performance. Categorized within the UHF (2GHz ~ 3GHz), SHF (f > 4GHz) frequency range to meet industry standards. Mounting configuration Adhesive for structural stability. Number of frequency bands 3 for frequency allocation. Type of housing Bulk for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Termination method U.FL (UMCC), I-PEX MHF1 for electrical or mechanical connections.
