Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2000 | ₹ 132.18000 | ₹ 2,64,360.00 |
| 500 | ₹ 144.10000 | ₹ 72,050.00 |
| 250 | ₹ 156.47000 | ₹ 39,117.50 |
| 100 | ₹ 176.58000 | ₹ 17,658.00 |
| 25 | ₹ 217.52000 | ₹ 5,438.00 |
| 10 | ₹ 253.77000 | ₹ 2,537.70 |
| 1 | ₹ 392.08000 | ₹ 392.08 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2000 | ₹ 151.30000 | ₹ 3,02,600.00 |
| 4000 | ₹ 144.18000 | ₹ 5,76,720.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Radio Frequency Protocol | - | |
| Frequency Classification | SHF (f > 4GHz) | |
| Band Center Frequency | 5.5GHz | |
| Operational Hz Spectrum | 5.15GHz ~ 5.85GHz | |
| RF Antenna Design | PCB Trace | |
| Frequency Band Quantity | 1 | |
| Voltage Standing Wave Ratio | 2 | |
| Reflection Loss dB | -10dB | |
| Amplification Factor | 5.4dBi | |
| Maximum Power Handling | 1 W | |
| Key Product Highlights | - | |
| Circuit End Method | U.FL (UMCC), I-PEX MHF1 | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Adhesive | |
| Upper Height Limit | 0.087" (2.20mm) | |
| Intended Uses | - |
Description

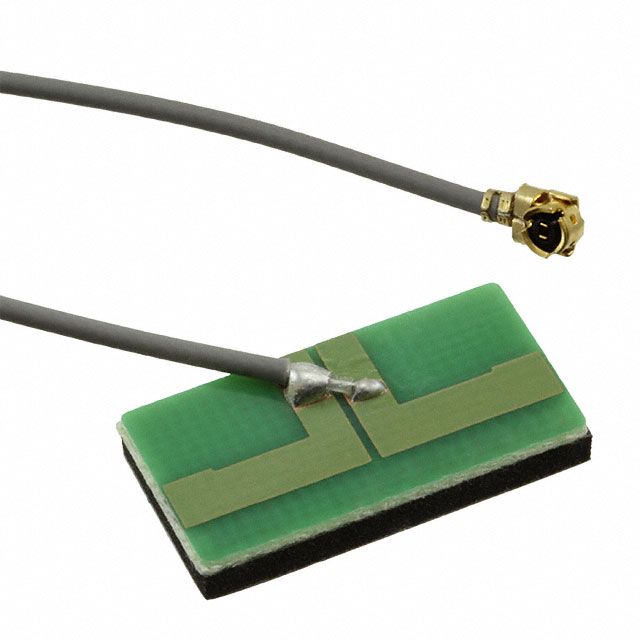

Utilizes a PCB Trace antenna style for improved signal capture. Offers a center frequency of 5.5GHz. Maintains a 5.5GHz center frequency for reliable signal performance. Categorized within the SHF (f > 4GHz) frequency range to meet industry standards. Offers a 5.15GHz ~ 5.85GHz frequency spectrum for broad-spectrum applications. Delivers 5.4dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.087" (2.20mm) to comply with design standards. Mounting configuration Adhesive for structural stability. Number of frequency bands 1 for frequency allocation. Type of housing Bulk for safeguarding or transporting components. Maximum power capability 1 W for safeguarding the device. Product status Active concerning availability and lifecycle. Loss of signal return -10dB for quality and reflection evaluations. Termination method U.FL (UMCC), I-PEX MHF1 for electrical or mechanical connections. Wave ratio 2 for RF performance.
