Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Cellular, Navigation, WiFi | |
| Frequency Classification | Wide Band | |
| Band Center Frequency | 829MH, 1.587GHz, 2.755GHz, 2.4425GHz, 5.45GHz | |
| Operational Hz Spectrum | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 3.8GHz, 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | |
| RF Antenna Design | Dome | |
| Frequency Band Quantity | 5 | |
| Voltage Standing Wave Ratio | 2.5 | |
| Reflection Loss dB | - | |
| Amplification Factor | 4dBi | |
| Maximum Power Handling | - | |
| Key Product Highlights | Cable - 3m | |
| Circuit End Method | SMA | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Panel Mount | |
| Upper Height Limit | 0.886" (22.50mm) | |
| Intended Uses | GNSS, GPS, GSM, LTE, UMTS, WCDMA, Wi-Fi |
Description

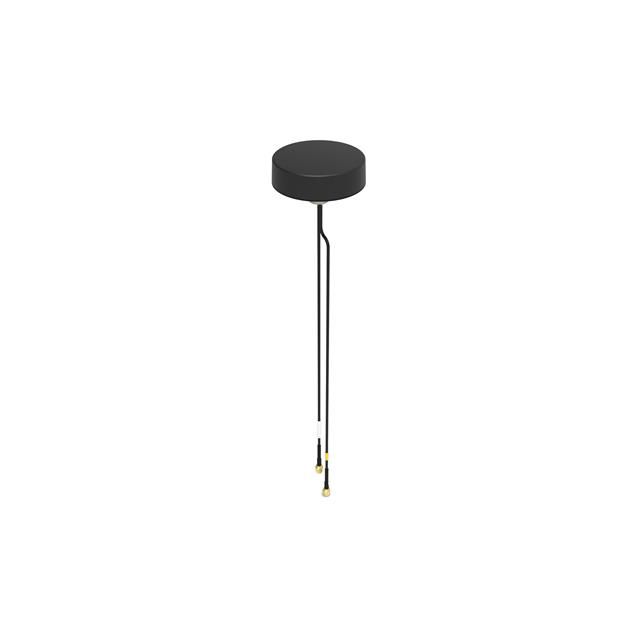

Utilizes a Dome antenna style for improved signal capture. Perfectly designed for situations involving GNSS, GPS, GSM, LTE, UMTS, WCDMA, Wi-Fi. Equipped with features categorized as Cable - 3m. Offers a center frequency of 829MH, 1.587GHz, 2.755GHz, 2.4425GHz, 5.45GHz. Maintains a 829MH, 1.587GHz, 2.755GHz, 2.4425GHz, 5.45GHz center frequency for reliable signal performance. Categorized within the Wide Band frequency range to meet industry standards. Offers a 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 3.8GHz, 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz frequency spectrum for broad-spectrum applications. Delivers 4dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.886" (22.50mm) to comply with design standards. Mounting configuration Panel Mount for structural stability. Number of frequency bands 5 for frequency allocation. Type of housing Bag for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol Cellular, Navigation, WiFi for communication standards. Termination method SMA for electrical or mechanical connections. Wave ratio 2.5 for RF performance.
