Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Navigation | |
| Frequency Classification | UHF (1GHz ~ 2GHz) | |
| Band Center Frequency | 1.575GHz | |
| Operational Hz Spectrum | 1.573GHz ~ 1.577GHz | |
| RF Antenna Design | Ceramic Patch | |
| Frequency Band Quantity | 1 | |
| Voltage Standing Wave Ratio | 1.5 | |
| Reflection Loss dB | - | |
| Amplification Factor | -1dBic | |
| Maximum Power Handling | - | |
| Key Product Highlights | - | |
| Circuit End Method | Solder | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Upper Height Limit | 0.177" (4.50mm) | |
| Intended Uses | GPS |
Description

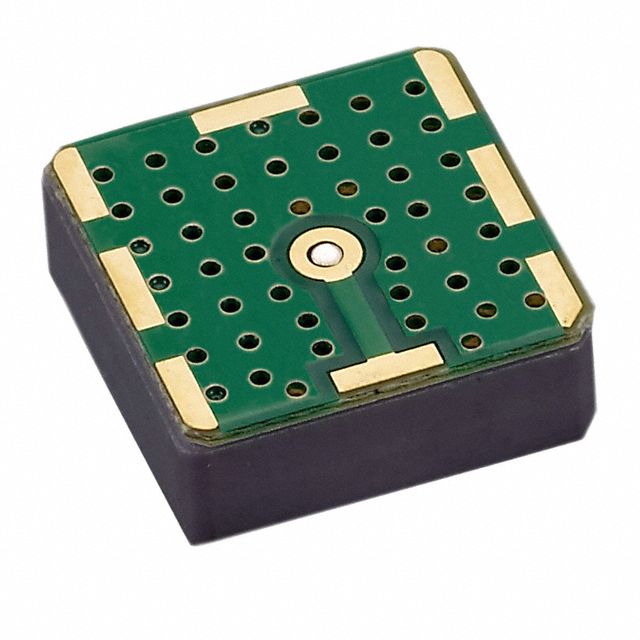

Utilizes a Ceramic Patch antenna style for improved signal capture. Perfectly designed for situations involving GPS. Offers a center frequency of 1.575GHz. Maintains a 1.575GHz center frequency for reliable signal performance. Categorized within the UHF (1GHz ~ 2GHz) frequency range to meet industry standards. Offers a 1.573GHz ~ 1.577GHz frequency spectrum for broad-spectrum applications. Delivers -1dBic gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.177" (4.50mm) to comply with design standards. Mounting configuration Surface Mount for structural stability. Number of frequency bands 1 for frequency allocation. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol Navigation for communication standards. Termination method Solder for electrical or mechanical connections. Wave ratio 1.5 for RF performance.
