Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TheStripe™ | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Cellular, General ISM | |
| Frequency Classification | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | |
| Band Center Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz | |
| Operational Hz Spectrum | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | |
| RF Antenna Design | Flat Patch | |
| Frequency Band Quantity | 4 | |
| Voltage Standing Wave Ratio | 2 | |
| Reflection Loss dB | -12dB, -25dB, -12dB, -10dB | |
| Amplification Factor | 0dBi | |
| Maximum Power Handling | 10 W | |
| Key Product Highlights | Cable - 100mm | |
| Circuit End Method | U.FL (UMCC), I-PEX MHF1 | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Upper Height Limit | 0.031" (0.80mm) | |
| Intended Uses | AMPS, DCS, GSM, PCS |
Description

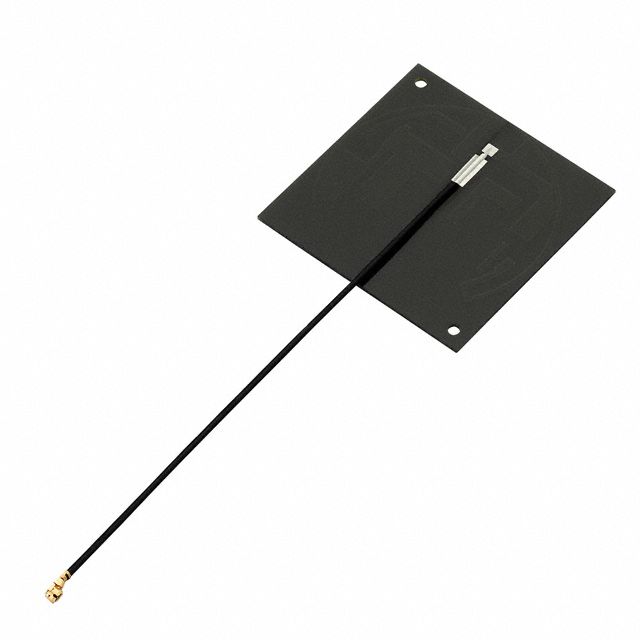

Utilizes a Flat Patch antenna style for improved signal capture. Perfectly designed for situations involving AMPS, DCS, GSM, PCS. Equipped with features categorized as Cable - 100mm. Offers a center frequency of 850MHz, 900MHz, 1.8GHz, 1.9GHz. Maintains a 850MHz, 900MHz, 1.8GHz, 1.9GHz center frequency for reliable signal performance. Categorized within the UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) frequency range to meet industry standards. Offers a 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz frequency spectrum for broad-spectrum applications. Delivers 0dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.031" (0.80mm) to comply with design standards. Mounting configuration Chassis Mount for structural stability. Number of frequency bands 4 for frequency allocation. Type of housing Bag for safeguarding or transporting components. Maximum power capability 10 W for safeguarding the device. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol Cellular, General ISM for communication standards. Loss of signal return -12dB, -25dB, -12dB, -10dB for quality and reflection evaluations. Classification series for the product or component TheStripe™. Termination method U.FL (UMCC), I-PEX MHF1 for electrical or mechanical connections. Wave ratio 2 for RF performance.
