Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Cellular | |
| Frequency Classification | Wide Band | |
| Band Center Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | |
| Operational Hz Spectrum | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | |
| RF Antenna Design | Flat Bar | |
| Frequency Band Quantity | 5 | |
| Voltage Standing Wave Ratio | 2 | |
| Reflection Loss dB | - | |
| Amplification Factor | 3dBi | |
| Maximum Power Handling | 10 W | |
| Key Product Highlights | Cable - 3m | |
| Circuit End Method | SMA Male | |
| Dust Water Resistance Rating | IP67 | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Adhesive | |
| Upper Height Limit | 0.256" (6.50mm) | |
| Intended Uses | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
Description

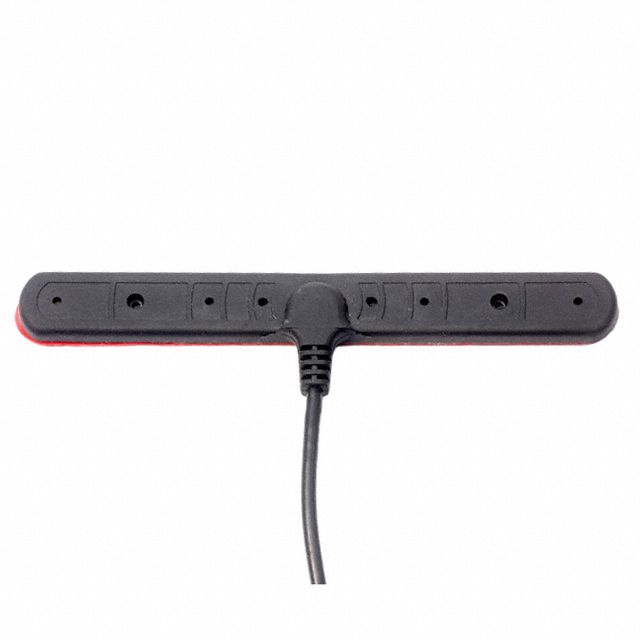

Utilizes a Flat Bar antenna style for improved signal capture. Perfectly designed for situations involving CDMA, DCS, GSM, PCS, UMTS, WCDMA. Equipped with features categorized as Cable - 3m. Offers a center frequency of 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz. Maintains a 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz center frequency for reliable signal performance. Categorized within the Wide Band frequency range to meet industry standards. Offers a 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz frequency spectrum for broad-spectrum applications. Delivers 3dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.256" (6.50mm) to comply with design standards. Rated with IP IP67 to safeguard against dust and moisture penetration. Mounting configuration Adhesive for structural stability. Number of frequency bands 5 for frequency allocation. Type of housing Bag for safeguarding or transporting components. Maximum power capability 10 W for safeguarding the device. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol Cellular for communication standards. Termination method SMA Male for electrical or mechanical connections. Wave ratio 2 for RF performance.
