Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | Cellular | |
| Frequency Classification | Wide Band | |
| Band Center Frequency | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | |
| Operational Hz Spectrum | - | |
| RF Antenna Design | Flat Patch | |
| Frequency Band Quantity | 6 | |
| Voltage Standing Wave Ratio | 2.5 | |
| Reflection Loss dB | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | |
| Amplification Factor | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | |
| Maximum Power Handling | - | |
| Key Product Highlights | - | |
| Circuit End Method | GSC | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Adhesive | |
| Upper Height Limit | 0.004" (0.10mm) | |
| Intended Uses | CDMA, GSM |
Description

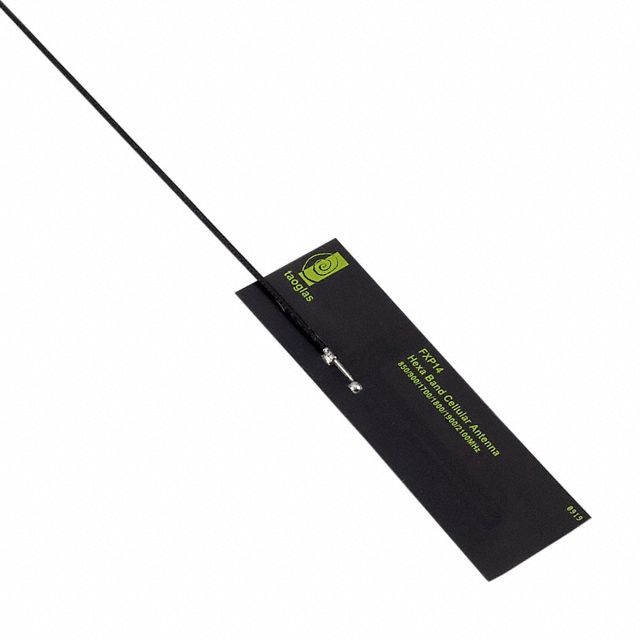

Utilizes a Flat Patch antenna style for improved signal capture. Perfectly designed for situations involving CDMA, GSM. Offers a center frequency of 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz. Maintains a 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz center frequency for reliable signal performance. Categorized within the Wide Band frequency range to meet industry standards. Delivers 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.004" (0.10mm) to comply with design standards. Mounting configuration Adhesive for structural stability. Number of frequency bands 6 for frequency allocation. Type of housing Bag for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol Cellular for communication standards. Loss of signal return -7dB, -12dB, -8dB, -9dB, -9dB, -8dB for quality and reflection evaluations. Termination method GSC for electrical or mechanical connections. Wave ratio 2.5 for RF performance.
