Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50000 | ₹ 128.03000 | ₹ 64,01,500.00 |
| 20000 | ₹ 129.06000 | ₹ 25,81,200.00 |
| 10000 | ₹ 130.09000 | ₹ 13,00,900.00 |
| 6000 | ₹ 131.13000 | ₹ 7,86,780.00 |
| 4000 | ₹ 132.17000 | ₹ 5,28,680.00 |
| 2000 | ₹ 134.64000 | ₹ 2,69,280.00 |
| 1200 | ₹ 139.39000 | ₹ 1,67,268.00 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 12000 | ₹ 136.25000 | ₹ 16,35,000.00 |
| 6000 | ₹ 136.95000 | ₹ 8,21,700.00 |
| 3200 | ₹ 137.66000 | ₹ 4,40,512.00 |
| 2000 | ₹ 138.36000 | ₹ 2,76,720.00 |
| 1200 | ₹ 146.22000 | ₹ 1,75,464.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 142.65000 | ₹ 7,13,250.00 |
| 3000 | ₹ 144.70000 | ₹ 4,34,100.00 |
| 1000 | ₹ 150.26000 | ₹ 1,50,260.00 |
| 500 | ₹ 154.76000 | ₹ 77,380.00 |
| 250 | ₹ 160.23000 | ₹ 40,057.50 |
| 100 | ₹ 169.31000 | ₹ 16,931.00 |
| 25 | ₹ 188.36000 | ₹ 4,709.00 |
| 10 | ₹ 205.59000 | ₹ 2,055.90 |
| 1 | ₹ 275.03000 | ₹ 275.03 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1200 | ₹ 147.74000 | ₹ 1,77,288.00 |
| 2800 | ₹ 142.40000 | ₹ 3,98,720.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | W | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Radio Frequency Protocol | 802.15.4, Bluetooth, WiFi | |
| Frequency Classification | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | |
| Band Center Frequency | 2.44GHz, 5.5GHz, 6.525GHz | |
| Operational Hz Spectrum | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | |
| RF Antenna Design | PCB Trace | |
| Frequency Band Quantity | 3 | |
| Voltage Standing Wave Ratio | - | |
| Reflection Loss dB | -15dB, -10dB, -6dB | |
| Amplification Factor | 2.3dBi, 5dBi, 2.5dBi | |
| Maximum Power Handling | - | |
| Key Product Highlights | Cable - 100mm | |
| Circuit End Method | U.FL | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Adhesive | |
| Upper Height Limit | 0.016" (0.40mm) | |
| Intended Uses | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
Description

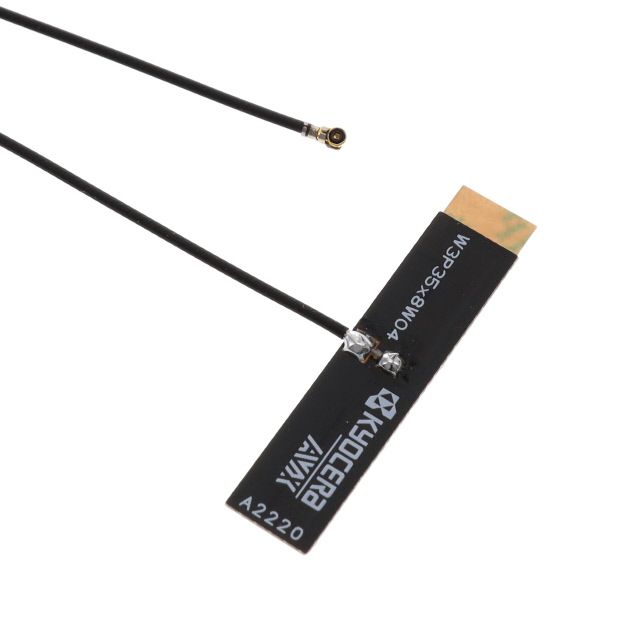

Utilizes a PCB Trace antenna style for improved signal capture. Perfectly designed for situations involving Bluetooth, Wi-Fi, WLAN, Zigbee™. Equipped with features categorized as Cable - 100mm. Offers a center frequency of 2.44GHz, 5.5GHz, 6.525GHz. Maintains a 2.44GHz, 5.5GHz, 6.525GHz center frequency for reliable signal performance. Categorized within the UHF (2GHz ~ 3GHz), SHF (f > 4GHz) frequency range to meet industry standards. Offers a 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz frequency spectrum for broad-spectrum applications. Delivers 2.3dBi, 5dBi, 2.5dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.016" (0.40mm) to comply with design standards. Mounting configuration Adhesive for structural stability. Number of frequency bands 3 for frequency allocation. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Type or family of RF protocol 802.15.4, Bluetooth, WiFi for communication standards. Loss of signal return -15dB, -10dB, -6dB for quality and reflection evaluations. Classification series for the product or component W. Termination method U.FL for electrical or mechanical connections.
